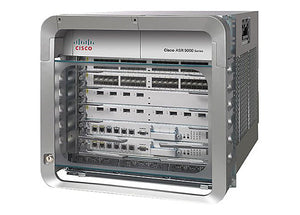

ASR-9006-AC-V2 Cisco ASR-9006 AC Router Chassis with PEM Version 2
Cisco ASR-9006-AC-V2 – High-Performance AC Router Chassis for Scalable Edge Networks
Cisco ASR-9006 AC Router Chassis with PEM V2: Ideal for High-Capacity, Energy-Efficient Networking Solutions
The Cisco ASR-9006-AC-V2 is a high-performance 6-slot AC-powered modular router chassis engineered for service providers and large enterprises requiring scalable, carrier-grade networking. Part of the Cisco ASR 9000 Series, this chassis delivers exceptional data, voice, and video transport capabilities with robust security, flexibility, and reliability for both public and private networks.
Built to simplify and enhance service-delivery network deployments, the ASR-9006-AC-V2 supports GE and 10GE Ethernet Services line cards in both base and extended-scale configurations. Powered by versatile network processors, it efficiently handles a wide range of Carrier Ethernet applications, ensuring maximum throughput and operational efficiency.
With a rack-mountable form factor, PEM Version 2 AC power modules, and hot-swappable, redundant components, the ASR-9006-AC-V2 ensures high availability and uninterrupted service. Its compliance with global industry standards such as FCC, CE, VCCI, and NEBS Level 3 guarantees seamless integration into diverse network environments.
Ideal for service provider edge, metro aggregation, and core routing, the Cisco ASR-9006-AC-V2 is designed to scale with growing bandwidth demands while delivering consistent performance and network resilience.
PLEASE NOTE - CHASSIS ONLY - DUAL FANS & POWER SUPPLIES SOLD SEPARATELY
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications: Cisco ASR-9006-AC-V2 – 6-Slot AC Router Chassis (Data Sheet)
| Specification Category | Details |
|---|---|
| Physical Dimensions & Weight | |
| Form Factor | 6-slot AC-powered router chassis |
| Dimensions (H x W x D) | 17.6 in × 17.4 in × 26.3 in (44.7 cm × 44.2 cm × 66.8 cm) |
| Weight | Approx. 40.8 kg (90 lbs) |
| Mounting | Rack-mountable (19-inch and 23-inch racks supported) |
| Performance & Capacity | |
| Forwarding Capacity | Up to 240 Gbps per chassis |
| Switch Fabric Capacity | Fully redundant fabric architecture for high performance |
| System Throughput | Scalable with modular line cards |
| Packet Forwarding Rate | Hardware-based high-speed packet forwarding |
| Service Capabilities | Ethernet, MPLS, Layer 3 IP routing, Layer 2 switching |
| Ports & Interfaces | |
| Chassis Slots | 6 total slots (for modular line cards and RSPs) |
| Supported Interfaces | Ethernet (1GE/10GE/40GE), Fiber Channel, SONET/SDH, OTN, MPLS |
| Expansion | Modular slots for additional line cards and RSP upgrades |
| Fan Tray | Redundant hot-swappable fans for optimal cooling |
| Compatibility | Supports multiple ASR 9000 series line cards and route processors |
| Power & Environmental | |
| Power Entry Module (PEM) | Version 2 AC PEM for efficient power distribution |
| Power Consumption | Approx. 1,000W (maximum) |
| Power Supply | Dual AC power supplies for redundancy |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Cooling | Front-to-back airflow design |
| Redundancy & Reliability | |
| High Availability Features | Hot-swappable fan trays, power supplies, and line cards |
| Resiliency | Fully redundant control, data, and fabric planes |
| Failover Support | Hitless failover and in-service software upgrade (ISSU) capabilities |
| Compliance & Standards | |
| Regulatory Compliance | NEBS Level 3, GR-63-CORE, GR-1089-CORE, RoHS compliant |
| Safety Certifications | UL, CSA, EN/IEC 60950-1 |
| EMC Compliance | FCC Part 15 Class A, EN 300 386, CISPR 22 Class A |
FAQs for Cisco ASR-9006-AC-V2
1. What makes the Cisco ASR-9006-AC-V2 ideal for large-scale networks?
The ASR-9006-AC-V2 offers high scalability, with the ability to support up to six modular line cards and a forwarding capacity of up to 240 Gbps, making it perfect for handling demanding traffic loads in large-edge networks.
2. How does the power efficiency of the Cisco ASR-9006-AC-V2 compare to other router chassis?
With its AC Power Entry Module (PEM) Version 2, the ASR-9006-AC-V2 is designed for optimal energy efficiency, reducing power consumption while ensuring reliable operation in demanding environments.
3. Can I expand the Cisco ASR-9006-AC-V2 as my network grows?
Yes, the ASR-9006-AC-V2 is highly scalable. It features six modular slots for line cards, allowing you to easily expand your network infrastructure as your business needs grow.
4. What kind of redundancy features does the Cisco ASR-9006-AC-V2 offer?
The router chassis includes redundant, hot-swappable fan trays and power supplies to ensure continuous uptime and high availability for your network.
5. Is the Cisco ASR-9006-AC-V2 compatible with a variety of network protocols?
Yes, it supports a wide range of protocols including Ethernet, MPLS, and Fiber Channel, providing flexibility for modern IP, carrier, and cloud-based networking solutions.
