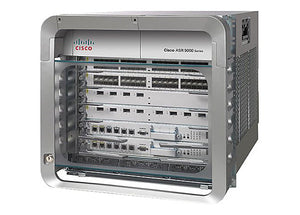

ASR-9006-DC-V2 Cisco ASR-9006 DC Router Chassis with PEM Version 2
Cisco ASR-9006-DC-V2 – Modular DC Router Chassis for ASR 9000 Series with PEM V2
High-Density Cisco ASR 9006 DC Chassis with Enhanced Power Entry Module (PEM) V2 for Scalable Network Deployments
ASR-9006-DC-V2 – Cisco ASR-9006 DC Router Chassis with PEM Version 2
The Cisco ASR-9006-DC-V2 is a powerful and compact 6RU router chassis from the industry-leading Cisco ASR 9000 Series Aggregation Services Routers, engineered for high-performance edge and core network deployments. Designed with carrier-grade reliability, high-density scalability, and energy-efficient modularity, this chassis is ideal for service providers and enterprise networks looking for robust routing performance, operational efficiency, and investment protection.
With support for two line card slots, dual route processor slots, and redundant DC PEM V2 power modules, the ASR-9006-DC-V2 is built to deliver high availability and continuous service with Cisco IOS XR software, offering nonstop forwarding and advanced network resiliency features such as EOAM and BFD. Its fully distributed system architecture offloads packet forwarding to the line cards, maximizing throughput and scalability.
Engineered for DC power environments, the ASR-9006 V2 uses a modular, pay-as-you-grow power system, ensuring reduced energy costs and optimized thermal design. With full support for IPv6, Synchronous Ethernet (SyncE), and Hierarchical QoS (H-QoS), this router chassis is fully future-proof, providing unmatched flexibility for evolving network demands like video delivery optimization and mobile aggregation.
Compliant with global safety and emissions standards (FCC, CE, VCCI, EN55022, and more), and backed by Cisco's trusted hardware ecosystem, the ASR-9006-DC-V2 enables high-speed, reliable, and sustainable network operations in mission-critical environments.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
PLEASE NOTE - CHASSIS ONLY - DUAL FANS & POWER SUPPLIES SOLD SEPARATELY
Product Specifications: Cisco ASR-9006-DC-V2 – DC Router Chassis with PEM Version 2 (Data Sheet)
| Category | Specification |
|---|---|
| Form Factor | Modular Chassis – 6RU |
| Dimensions (H × W × D) | 10.5 in × 17.3 in × 30 in (26.7 cm × 43.9 cm × 76.2 cm) |
| Weight | Approx. 110 lbs (49.9 kg) – Fully Loaded |
| Line Card Slots | 2 |
| Route Processor Slots | 2 |
| Fabric Slots | 1 |
| Fan Trays | 1 – Field-replaceable |
| Power Type | DC Power – PEM Version 2 |
| Input Voltage Range | –40 to –72 VDC |
| Power Configuration | Dual Redundant DC PEM V2 (Modular Power System) |
| Typical Power Consumption | Up to 2,400W (varies based on installed modules) |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Operating System | Cisco IOS® XR – Modular, Carrier-Class OS |
| System Architecture | Fully Distributed – Packet forwarding on individual line cards |
| Platform Highlights | - Carrier-class reliability and scalability - Supports video delivery & mobile aggregation - IPv6 ready via Virtualized Service Module (VSM) |
| Compliance & Standards | ACA TS001, AS/NZS 60950-1, BSMI, CISPR 22 Class A, EN55022, FCC Part 15, VCCI Class A, IEC 61000 series, and more |
FAQs for Cisco ASR-9006-DC-V2
1. What is the difference between DC-V2 and earlier ASR 9006 models?
The V2 version includes enhanced DC Power Entry Modules (PEMs) for better power efficiency and reliability in modern deployments.
2. How many line cards can the ASR-9006-DC-V2 chassis support?
It supports up to 2 line cards, along with 2 route processors, making it ideal for compact, high-performance edge routing.
3. Does the ASR-9006-DC-V2 support high availability?
Yes, it supports redundant route processors, power supplies, and fan trays, ensuring carrier-grade uptime.
4. Can this chassis be used in full-mesh fabric deployments?
Yes, it includes a fabric slot for full-mesh, high-capacity switching between line cards.
5. Is the ASR-9006-DC-V2 suitable for service provider edge environments?
Absolutely—it’s designed for metro aggregation and edge routing, supporting high-scale features like MPLS, Segment Routing, and full IPv4/IPv6 services.
