C6800-48P-SFP Cisco Catalyst 6800 48-port 1GE fiber module with integrated DFC4
C6800-48P-SFP Cisco Catalyst 6800 48-Port 1GE Fiber Module with Integrated DFC4
High-Density 1 Gigabit Ethernet Fiber Module with Advanced DFC4 Forwarding for Catalyst 6800

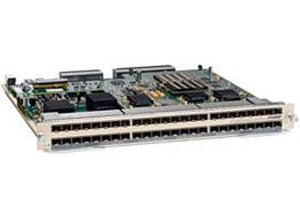

The Cisco Catalyst 6800 Series C6800-48P-SFP is a high-performance 48-port 1 Gigabit Ethernet fiber module designed specifically for the Catalyst 6800 chassis. Equipped with the advanced Distributed Forwarding Card 4 (DFC4), it delivers exceptional hardware-based forwarding for enterprise core and distribution layers. Supporting wire-speed Layer 2 and Layer 3 functionalities—including VLANs, EtherChannel, QoS, IPv4/v6 routing, MPLS, and multicast—the C6800-48P-SFP ensures robust network performance and scalability.
This module supports a variety of Cisco SFP transceivers for both multimode and single-mode fiber, featuring hot-swappable installation for easy maintenance. Managed via Cisco IOS XE Software, it integrates with Cisco Prime Infrastructure for centralized, efficient network management, telemetry, and monitoring. With typical power consumption around 75W and operating temperatures ranging from 0°C to 45°C, the module is optimized for high availability with redundant, hot-swappable components.
Choose the Cisco Catalyst 6800 C6800-48P-SFP module for scalable, high-performance enterprise fiber connectivity with robust security and advanced hardware acceleration, ideal for demanding core and distribution networks.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications: Cisco Catalyst 6800 Series C6800-48P-SFP
CLICK HERE FOR DATA SHEET
| Specification | Details |
|---|---|
| Product Name | Cisco Catalyst 6800 Series C6800-48P-SFP |
| Model Number | C6800-48P-SFP |
| Description | High-performance 48-port 1 Gigabit Ethernet fiber module for Catalyst 6800 chassis |
| Ports & Interfaces | 48 x 1 Gigabit Ethernet SFP ports (fiber); supports multimode and single-mode Cisco SFPs |
| Integrated Features | Distributed Forwarding Card 4 (DFC4) for enhanced forwarding and hardware packet processing |
| Hot-swappable | Yes |
| Switching Capacity | Up to 480 Gbps per module |
| Forwarding Rate | High-performance hardware forwarding via DFC4 |
| Layer 2 & Layer 3 Support | Full Layer 2 switching and Layer 3 routing |
| Advanced Features | VLANs, Spanning Tree Protocol (STP), EtherChannel, hardware-based QoS and ACLs |
| Protocol Support | IPv4 and IPv6 routing, MPLS, multicast |
| Compatibility | Designed for Catalyst 6800 chassis |
| Software | Cisco IOS XE Software |
| Power Consumption | Approximately 75W |
| Operating Temperature | 0°C to 45°C |
| Redundancy & Availability | Hot-swappable and redundant support for high availability |
| Management Interfaces | Managed via Cisco IOS XE with CLI, SNMP; supports Cisco Prime Infrastructure |
| Telemetry & Monitoring | Integrated telemetry and monitoring capabilities |
| Dimensions (H x W x D) | 1.2 x 14.4 x 16 in (3.0 x 35.6 x 40.6 cm) |
| Weight | 9.03 lbs (4.1 kg) |
This fiber module enhances the Cisco Catalyst 6800 chassis by offering scalable 1GbE fiber connectivity combined with integrated forwarding acceleration and robust enterprise features suited for core and distribution layers.
FAQs for C6800-48P-SFP:
What types of SFP modules are compatible with the C6800-48P-SFP?
It supports a wide range of Cisco SFP modules, including multimode and single-mode optics, depending on your fiber infrastructure needs.
Can the module be hot-swapped without downtime?
Yes, the C6800-48P-SFP supports hot-swappable installation to ensure minimal disruption during maintenance.
Does the module support IPv6 routing?
Yes, it supports both IPv4 and IPv6 routing protocols.
Is the DFC4 integrated into the module?
Yes, the Distributed Forwarding Card 4 (DFC4) is integrated to provide enhanced forwarding performance.
Is this module compatible with Cisco Catalyst 6500 series?
While primarily designed for the 6800 chassis, it shares software compatibility with Catalyst 6500 systems but is optimized for Catalyst 6800.
