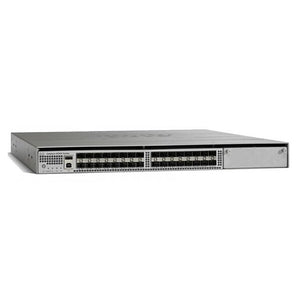

WS-C4500X-32SFP+ Cisco Catalyst 4500-X 32-Port 10GBE Aggregation Switch
WS-C4500X-32SFP+ Cisco Catalyst 4500-X 32-Port 10GbE Aggregation Switch
Compact, High-Performance 10GbE Aggregation Switch for Scalable Enterprise Networks
PLEASE NOTE - POWER SUPPLIES ARE NOT INCLUDED AND MUST BE PURCHASED SEPARATELY
The Cisco Catalyst WS-C4500X-32SFP+ is a high-performance fixed aggregation layer switch designed to deliver scalable, secure, and resilient network connectivity for campus and data center environments. With 32 x 10 Gigabit Ethernet SFP+ ports and support for an optional 8-port uplink module (total 40 ports), this compact 1RU switch provides industry-leading Layer 2/3 performance, high availability, and advanced security features.
Built with enterprise-grade flexibility, the WS-C4500X-32SFP+ delivers up to 800 Gbps switching capacity and 595.2 Mpps forwarding rate, making it ideal for high-density aggregation deployments. Its support for Virtual Switching System (VSS) simplifies network management, enhances redundancy, and ensures continuous uptime for mission-critical applications.
Why Choose the Cisco WS-C4500X-32SFP+?
The WS-C4500X-32SFP+ is the ideal solution for organizations seeking high-performance aggregation switching with scalability, redundancy, and security built in. Its advanced feature set makes it suitable for campus backbones, data center aggregation, and enterprise networks that demand always-on connectivity and future-ready performance.
👉 Perfect for: Campus networks, enterprise aggregation, and data centers requiring secure, resilient, and scalable 10G connectivity.
⚡ Simplify your network core and aggregation with the Cisco Catalyst WS-C4500X-32SFP+ for unmatched performance and reliability.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications – Cisco Catalyst WS-C4500X-32SFP+
CLICK HERE FOR DATA SHEET
| Specification | Details |
|---|---|
| Model Number | WS-C4500X-32SFP+ |
| Description | Fixed aggregation layer switch with 32 x 10 Gigabit Ethernet SFP+ ports. Designed for campus and data center aggregation with high availability, advanced Layer 2/3 performance, and integrated security in a 1RU compact form factor. |
| Ports & Interfaces | - 32 x 10 Gigabit Ethernet SFP+ ports - Optional 8-port uplink module (total of 40 ports) - 1 x RJ-45 console port - 1 x USB Type-A storage port - Redundant power supply support |
| Performance & Switching Capacity | - Switching capacity: up to 800 Gbps - Forwarding rate: up to 595.2 Mpps - Layer 2 and Layer 3 wire-speed switching - MAC address table size: 64K entries |
| Features & Capabilities | - Full Layer 2 and Layer 3 routing support - IPv4 and IPv6 unicast/multicast routing - Virtual Switching System (VSS) for redundancy and simplified management - Comprehensive QoS and access control policies - Embedded Flexible NetFlow for traffic monitoring and visibility - Integrated security features: TrustSec, MACsec encryption, 802.1X authentication |
| Redundancy & Resiliency | - Supports dual redundant, field-replaceable power supplies - Hot-swappable fan trays - VSS support for high availability |
| Environmental & Compliance | - Operating temperature: 0°C to 40°C - Form factor: 1RU fixed-configuration switch - ENERGY STAR, RoHS, and WEEE compliant - Typical power consumption: ~300–350W |
| Additional Specifications | - DRAM: 4 GB - Flash memory: 2 GB - Dimensions (H x W x D): 1.72 x 17.5 x 21.5 in (4.4 x 44.5 x 54.6 cm) - Weight: ~20 lbs (9.1 kg) |
FAQs for WS-C4500X-32SFP+:
Can this switch be used as a core switch in a mid-size network?
Yes, it’s designed for aggregation and small-core roles with high port density and advanced Layer 3 features.
Does the switch support VSS (Virtual Switching System)?
Yes, the WS-C4500X-32SFP+ supports VSS, allowing two switches to operate as a single logical device for redundancy and simplified management.
Are all ports 10G capable?
Yes, all 32 SFP+ ports support 10GbE connectivity, and optics such as SR, LR, and ER modules are compatible.
Is this switch stackable?
It does not support StackWise but supports VSS for similar functionality and high-availability deployment.
What power options are available?
The switch supports dual redundant power supplies and hot-swappable fans for uninterrupted performance.
