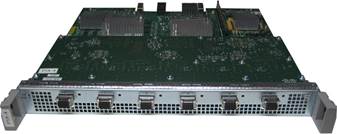

ASR1000-6TGE Cisco ASR1000 6-port 10GE Line Card
Cisco ASR1000-6TGE – 6-Port 10 Gigabit Ethernet Line Card for ASR 1000 Series Routers
High-Performance Cisco ASR1000 10GE Line Card for Scalable Edge and WAN Aggregation
Cisco ASR1000-6TGE – 6-Port 10 Gigabit Ethernet Line Card
The Cisco ASR1000-6TGE is a high-performance 6-Port 10 Gigabit Ethernet Line Card designed for the Cisco ASR 1000 Series Aggregation Services Routers. Delivering up to 40 Gbps full-duplex throughput, this fixed-port line card is purpose-built for enterprises and service providers demanding high-density 10G Ethernet connectivity, rich Layer 2/3 features, and advanced network services.
Equipped with six 10-Gigabit Ethernet SFP+ ports, the ASR1000-6TGE offers flexibility with support for both copper and fiber optics, including single-mode and multimode configurations. This makes it an ideal solution for modern data centers, enterprise cores, and edge routing applications.
Unlike modular SPA-based solutions, the ASR1000-6TGE provides a cost-effective, fixed configuration that reduces per-port costs while maximizing port density. It integrates directly into the ASR 1000 chassis slot, replacing the need for a separate Shared Port Adapter (SPA) and Interface Processor.
Key Features:
-
High-density 10GE connectivity with 6x SFP+ ports
-
Up to 40 Gbps throughput for wire-speed forwarding
-
Advanced L2/L3, MPLS, IP, IPv6 packet processing
-
Rich Quality of Service (QoS) including ingress/egress shaping and egress queuing
-
Optimized for low-latency applications via high/low priority lanes
-
LED indicators for status, power, and link activity
Compatible with ASR1004, ASR1006, and ASR1013 platforms, this line card allows seamless integration into existing Cisco ASR1000 Series deployments. Designed for scalability, performance, and flexibility, the Cisco ASR1000-6TGE is the perfect choice for businesses looking to expand 10G infrastructure without compromising on reliability or feature richness.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications: Cisco ASR1000-6TGE – 6-Port 10GE SPA Interface Processor (SIP) Line Card - Data Sheet
| Category | Specification |
|---|---|
| Product Type | SPA Interface Processor (SIP) Line Card |
| Part Number | Cisco ASR1000-6TGE |
Physical Dimensions & Weight
| Attribute | Specification |
|---|---|
| Form Factor | Line card (SIP) for Cisco ASR 1000 Series Routers |
| Dimensions (H × W × D) | 1.75 in × 16.7 in × 18.5 in (4.45 cm × 42.4 cm × 47 cm) |
| Weight | Approx. 10.8 lbs (4.9 kg) |
Performance & Capacity
| Attribute | Specification |
|---|---|
| Ports | 6 × 10 Gigabit Ethernet (SFP+) |
| Throughput | Up to 60 Gbps (varies based on router model and software license) |
| Packet Forwarding | Line-rate forwarding on all ports |
Interfaces & Connectivity
| Attribute | Specification |
|---|---|
| Port Type | SFP+ (supports 10G SR, LR, ER optical modules) |
| Supported Optics | Cisco-certified 10G SFP+ transceivers |
| Compatible Platforms | Cisco ASR1004, ASR1006, ASR1013 |
| Network Services | MPLS, Quality of Service (QoS), IPv4/IPv6, NetFlow, VPN support |
Power & Environmental
| Attribute | Specification |
|---|---|
| Power Consumption | Approx. 160W (typical) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 149°F (-40°C to 65°C) |
FAQs for Cisco ASR1000-6TGE
1. What transceivers are supported on the ASR1000-6TGE line card?
The card supports Cisco SFP+ 10G optics, including SR, LR, ER, and ZR transceivers.
2. Is this line card compatible with all ASR 1000 chassis?
It is compatible with ASR1004, ASR1006, and ASR1013 platforms, provided they have the correct SIP slots.
3. What is the maximum throughput this line card can handle?
It supports up to 60 Gbps, but actual throughput depends on the router model and software license applied.
4. Can all six ports operate simultaneously at 10G?
Yes, all 6 × 10G ports can operate at line rate simultaneously, assuming sufficient system capacity.
5. What network features are supported on this module?
It supports advanced features including MPLS, QoS, Layer 2 and 3 VPNs, IPv4/IPv6 routing, and NetFlow.
