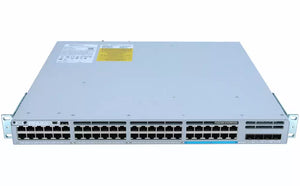

C9300L-48UXG-4X-A Catalyst 9300L 48p, 12mGig, Network Advantage ,4x10G Uplink
Cisco Catalyst 9300L‑48UXG‑4X‑A Stackable Switch – 48‑Port UPOE + 4×10 GbE Uplink
Secure, High‑Performance Access Switch – 12‑Port Multigig, UPOE, Network Advantage
The Cisco Catalyst 9300L‑48UXG‑4X‑A is a robust, stackable Layer 3 switch designed for modern enterprise and campus networks. It features 48 UPOE-capable copper ports (12 multigig up to 10 Gb/s) and 4 fixed 10 GbE SFP+ uplink ports, delivering high availability, rich security, and wireless-ready access. Paired with the Network Advantage software license, it unlocks advanced routing, automation, and security features.
🔧 Product Specifications for C9300L-48UXG-4X-A Catalyst 9300L 48p
| Feature | Details |
|---|---|
| Model | C9300L‑48UXG‑4X‑A |
| Ports | 36× 1 GbE, 12× Multigig (1/2.5/5/10 GbE) UPOE+, 4× 10 GbE SFP+ uplinks |
| Power over Ethernet | UPOE+, up to 60 W per port; total PoE budget ~ 880 W |
| Uplink Interface | 4× 10 GbE SFP+ fixed |
| Stacking Bandwidth | 320 Gb/s (StackWise‑320) |
| Software License | Network Advantage |
| Switching Capacity | 176 Gb/s |
| Performance (Layer 3) | 130 Mpps approximate forwarding rate |
| ASIC/Architecture | Cisco UADP 2.0, IOS XE |
| Redundant Power | Supports dual 1100 W PSUs |
| Fans | 3 field-replaceable hot-swap |
| Form Factor | 1U rack-mountable, stackable |
| Airflow | Port-side intake (front-to-back) |
| Dimensions (H×W×D) | 1.73″ × 17.5″ × 19.2″ (4.4 × 44.5 × 48.8 cm) |
| Weight | 16.86 lbs (7.65 kg) |
| Operating Temp | –5 °C to +45 °C, 5–90% RH |
| Certifications | Cisco StackWise, UPOE, PoE+, Multigig, NetFlow, MACsec, SD‑Access ready |
❓ Frequently Asked Questions (FAQs)
Q1: What multigig capabilities does this switch offer?
A: It includes 12 multigig ports supporting 1/2.5/5/10 GbE, ideal for high-bandwidth APs and edge devices.
Q2: What software features are included with Network Advantage?
A: Offers full Layer 3 routing, advanced security (MACsec, flexible NetFlow), and Cisco SD‑Access architecture support.
Q3: Can this unit be stacked with other 9300L models?
A: Yes, it supports StackWise‑320 stacking, enabling up to 8 units with 320 Gb/s interconnect.
Q4: How much power can it deliver via UPOE?
A: Provides up to 60 W per port, with a total PoE budget ~880 W.
Q5: What are the dimensions and weight?
A: Measures 1.73″ × 17.5″ × 19.2″ (4.4 × 44.5 × 48.8 cm) and weighs approximately 16.86 lbs (7.65 kg).
