C9200-24P-A - Cisco Catalyst 9200 24-Port PoE+ Network Advantage
Cisco C9200-24P-A Catalyst 9200 24-Port PoE+ Network Advantage Switch
Enterprise-Grade Modular Layer 3 Switching with Advanced Security and Automation
The Cisco Catalyst C9200-24P-A is a high-performance, modular enterprise access switch built to deliver advanced routing, security, and scalability for modern campus networks. Part of the trusted Cisco Catalyst 9200 Series, this switch is powered by the Network Advantage license, enabling full Layer 3 routing with support for BGP, EIGRP, OSPF, and VRF-Lite - making it ideal for organizations that require robust routing at the access layer.

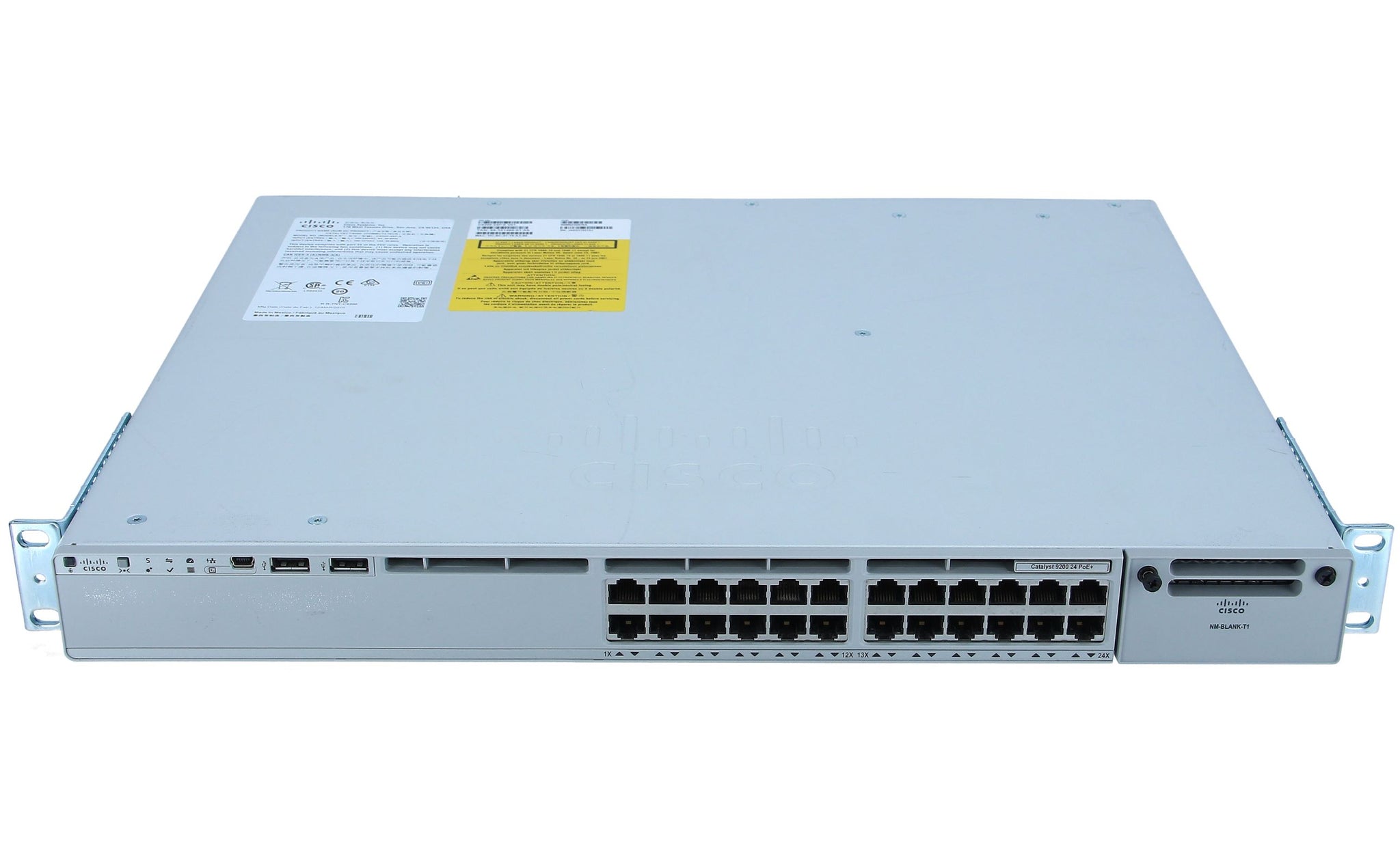

Featuring 24 Gigabit Ethernet PoE+ ports with a 370W power budget (expandable with higher-capacity power supplies), the C9200-24P-A is well-suited for powering wireless access points, IP phones, cameras, and IoT devices. Its modular uplink architecture supports flexible 1G, 10G, 25G, or 40G uplink modules, allowing the switch to scale seamlessly as network demands grow.
With a 128 Gbps switching capacity, 190.47 Mpps forwarding rate, and StackWise-160 technology, up to eight switches can operate as a single logical unit with 160 Gbps stacking bandwidth, delivering high availability and simplified management. Enterprise-grade security features such as Cisco TrustSec, Secure Boot, and 128-bit MACsec encryption help protect the network against unauthorized access and threats.

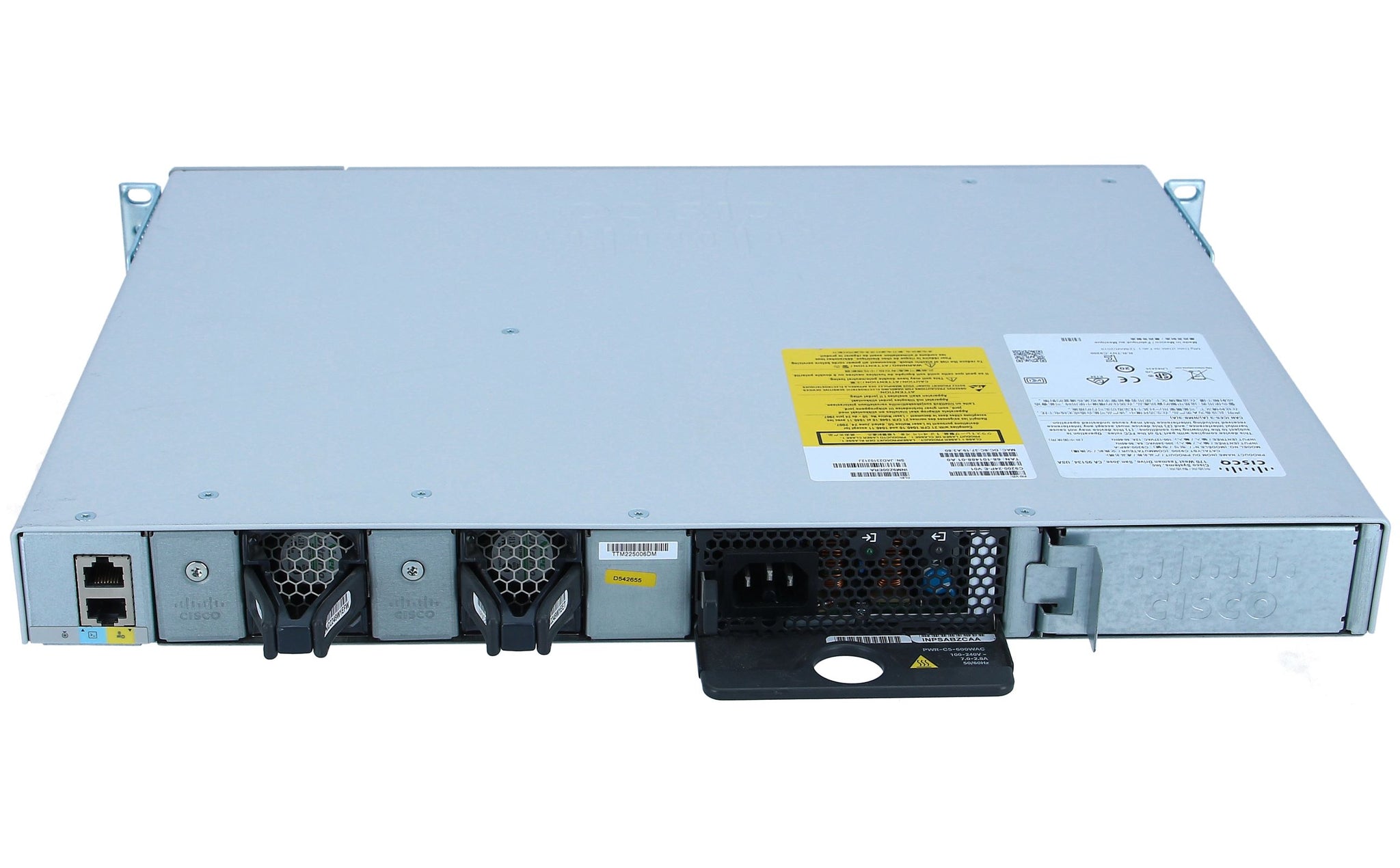

Designed for resiliency, the Cisco C9200-24P-A supports dual redundant, field-replaceable power supplies and fans, ensuring maximum uptime in mission-critical deployments. Integration with Cisco DNA Center and support for automation and telemetry make this switch a strong foundation for intent-based networking and long-term campus modernization.
Product Specifications – Cisco Catalyst C9200-24P-A PoE+ Access Switch
CLICK HERE FOR DATA SHEET
| Category | Specification Details |
|---|---|
| Product Name | Cisco Catalyst C9200-24P-A |
| Model Number | C9200-24P-A |
| Manufacturer | Cisco Systems |
| Switch Series | Cisco Catalyst 9200 Series |
| Product Type | Modular, Stackable Enterprise Access Switch |
| Deployment Layer | Enterprise Access Layer |
| Total Access Ports | 24 × 10/100/1000 Mbps RJ-45 |
| PoE Support | IEEE 802.3af / 802.3at (PoE / PoE+) |
| Default PoE Budget | 370W (expandable with higher-capacity PSU) |
| Maximum PoE per Port | Up to 30W |
| Uplink Architecture | Modular uplink slot |
| Supported Uplink Modules | 1G, 10G, 25G, 40G Ethernet (modules sold separately) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 190.47 Mpps |
| Stacking Technology | StackWise-160 |
| Stacking Bandwidth | Up to 160 Gbps |
| Maximum Stack Size | Up to 8 switches |
| MAC Address Table | 32,000 entries |
| VLAN Support | Up to 4,096 VLANs |
| Operating System | Cisco IOS XE |
| Software License Included | Network Advantage |
| Layer 2 Features | VLAN, STP, RSTP, MST, EtherChannel |
| Layer 3 Features | Static routing, OSPF, EIGRP, BGP, VRF-Lite, PBR |
| Security Features | Cisco TrustSec, Secure Boot, Trust Anchor |
| Encryption | 128-bit MACsec (hardware supported) |
| Access Security | 802.1X, DHCP Snooping, Dynamic ARP Inspection |
| Telemetry & Visibility | Flexible NetFlow, Streaming Telemetry |
| Management Options | Web UI, CLI, SNMP, NETCONF/RESTCONF |
| Automation | Cisco DNA Center, Plug-and-Play (PnP) |
| Memory (DRAM) | 4 GB |
| Flash Storage | 4 GB |
| Power Supply Type | Modular, field-replaceable |
| Power Redundancy | Dual redundant PSU support |
| Cooling | Redundant, field-replaceable fans |
| Form Factor | 1RU, rack-mountable |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Operating Humidity | 5% to 95% non-condensing |
| High Availability | PSU, fan, and stack-level redundancy |
| Primary Use Case – PoE | Wireless APs, IP phones, cameras |
| Primary Use Case – Routing | Full Layer 3 campus access |
| Primary Use Case – Scalability | Modular uplinks and switch stacking |
| Package Contents | Switch chassis, default PSU, rack-mount kit |
FAQs:
Q1. What is the benefit of the "Network Advantage" license?
It unlocks advanced Layer 3 features like BGP and EIGRP, plus enhanced segmentation, which are not available in the "Network Essentials" tier.
Q2. Does this switch include the uplink module?
No, the uplink module (NM) is modular and must be purchased separately based on your speed requirements (e.g., 4x10G or 2x40G).
Q3. Can the PoE budget be increased?
Yes. Adding a second power supply allows you to increase the PoE budget from 370W to 740W.
Q4. Is this switch stackable?
Yes, it supports StackWise-160, allowing you to stack up to 8 switches with a combined throughput of 160 Gbps.
Q5. What is the difference between C9200 and C9200L?
The C9200 features modular uplinks and higher stacking speeds, whereas the C9200L has fixed uplinks and lower stacking capacity.
