C9200-48P-A - Cisco Catalyst 9200 48-Port PoE+ Network Advantage

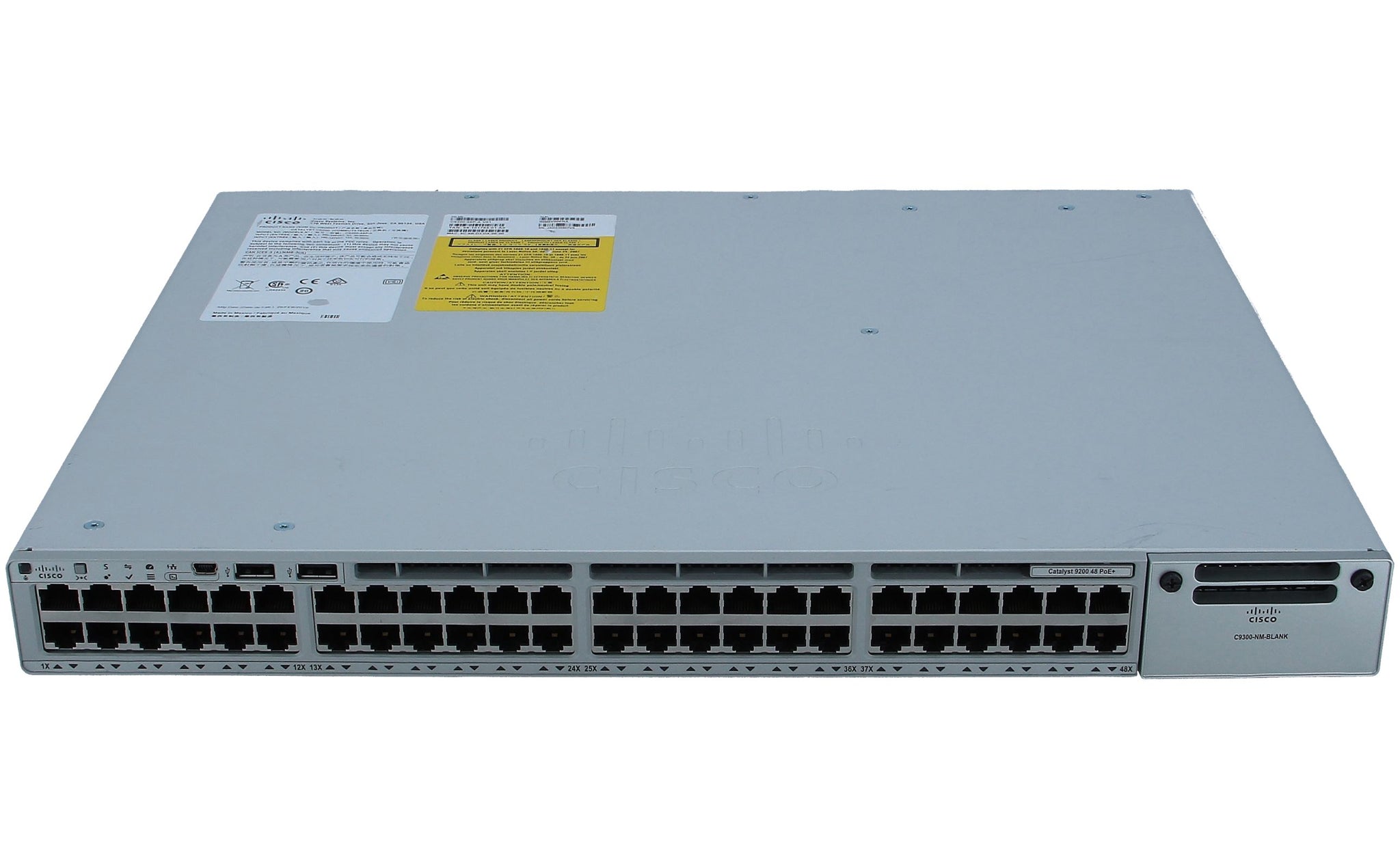

Cisco C9200-48P-A Catalyst 9200 48-Port PoE+ Network Advantage Switch
Advanced Layer 3 Modular Switching with High-Density PoE+ for Enterprise Networks
The Cisco Catalyst C9200-48P-A is a high-performance, enterprise-grade access layer switch designed to support modern, intent-based networking. Equipped with 48 full PoE+ Gigabit Ethernet ports and a modular uplink architecture, this switch delivers the flexibility required for growing campus and branch networks. With a 740W PoE budget (expandable up to 1440W), it reliably powers IP phones, Wi-Fi 6 access points, cameras, and IoT devices.
Powered by Cisco IOS XE and the Network Advantage license, the C9200-48P-A provides full Layer 3 routing, including BGP, OSPF, EIGRP, IS-IS, and VRF-Lite - making it ideal for complex enterprise topologies. StackWise-160 technology enables stacking of up to eight switches with 160 Gbps bandwidth, simplifying management while ensuring high availability.
Advanced security features such as MACsec-128 encryption, Cisco TrustSec, secure boot, and 802.1X protect the access layer, while Flexible NetFlow and Cisco DNA Center integration deliver deep visibility, automation, and assurance. With redundant, field-replaceable power supplies and fans, the Cisco Catalyst C9200-48P-A is built for resilient, scalable, and future-ready enterprise networks.
Product Specifications – Cisco Catalyst C9200-48P-A
CLICK HERE FOR DATA SHEET
| Specification Category | Details |
|---|---|
| Product Name | Cisco Catalyst C9200-48P-A |
| Product Series | Cisco Catalyst 9200 Series |
| Category | Enterprise Access Layer Switch |
| Manufacturer | Cisco Systems |
| Model / Part Number | C9200-48P-A |
| Product Description | High-performance modular 48-port PoE+ access switch designed for intent-based networking, delivering full Layer 3 routing, advanced security, and scalable enterprise resiliency. |
| Downlink Ports | 48 × 10/100/1000 Mbps RJ-45 PoE+ |
| PoE Support | IEEE 802.3af / 802.3at (PoE / PoE+) |
| PoE Power Budget | 740W default, expandable up to 1440W with secondary PSU |
| Uplink Options | Modular uplink slot (supports 4×1G, 4×10G, 2×25G, or 2×40G network modules) |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.95 Mpps |
| Stacking Technology | StackWise-160 |
| Stacking Bandwidth | 160 Gbps |
| Maximum Stack Size | Up to 8 switches |
| Processor / ASIC | Cisco UADP ASIC (access-optimized architecture) |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| Software Image | Cisco IOS XE |
| License Tier | Network Advantage |
| Layer 2 Features | VLANs, STP, RSTP, MST, EtherChannel |
| Layer 3 Features | OSPF, EIGRP, BGP, IS-IS, VRF-Lite, Policy-Based Routing |
| Security Features | MACsec-128, Cisco TrustSec, 802.1X, Secure Boot, DHCP Snooping, Dynamic ARP Inspection |
| Traffic Visibility | Flexible NetFlow |
| Management & Automation | CLI, Web UI, SNMP, NETCONF/RESTCONF, Cisco DNA Center |

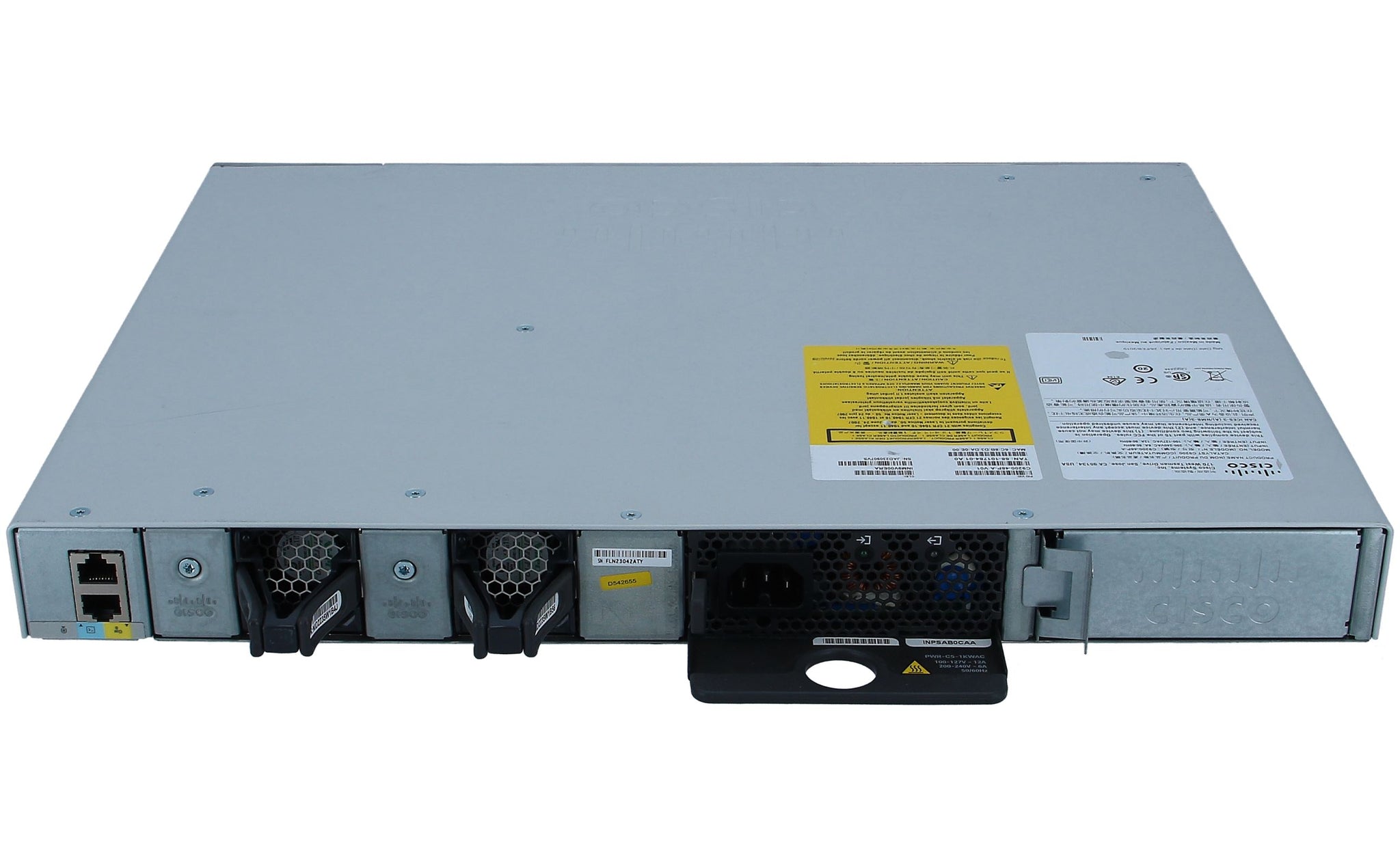

| Power Supply | Modular, field-replaceable; supports dual redundant PSUs |
| Cooling | Redundant, field-replaceable fans |
| Form Factor | 1RU rack-mountable |
| High Availability | Redundant PSUs, redundant fans, stack-level resiliency |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Humidity | 5% to 95% non-condensing |
| Typical Use Cases | Enterprise access layer, high-density PoE deployments, Wi-Fi 6 access, IP telephony, IoT connectivity |
FAQs:
Q1. What is the benefit of the "Network Advantage" license over "Network Essentials"?
Network Advantage provides full Layer 3 routing capabilities (BGP, OSPF, EIGRP), advanced segmentation (VRF), and Cisco StackWise Virtual, which are essential for core or complex distribution layers.
Q2. Does this switch include the uplink module?
No, the uplink network modules (NM) are sold separately. You can choose from modules such as 4x10G (C9200-NM-4G) or 4x10G (C9200-NM-4X) based on your bandwidth needs.
Q3. How can I increase the PoE budget to 1440W?
By adding a second 1000W AC power supply (PWR-C5-1KWAC), you can increase the total PoE budget from 740W to 1440W to support 30W PoE+ on all 48 ports simultaneously.
Q4. Can the C9200-48P-A be stacked with C9200L models?
No. The C9200 series (modular uplinks) uses StackWise-160, while the C9200L series (fixed uplinks) uses StackWise-80. They are not compatible for stacking with each other.
Q5. Is this switch ready for Cisco DNA Center?
Yes, it is fully compatible with Cisco DNA Center for automated deployment, management, and network analytics.
