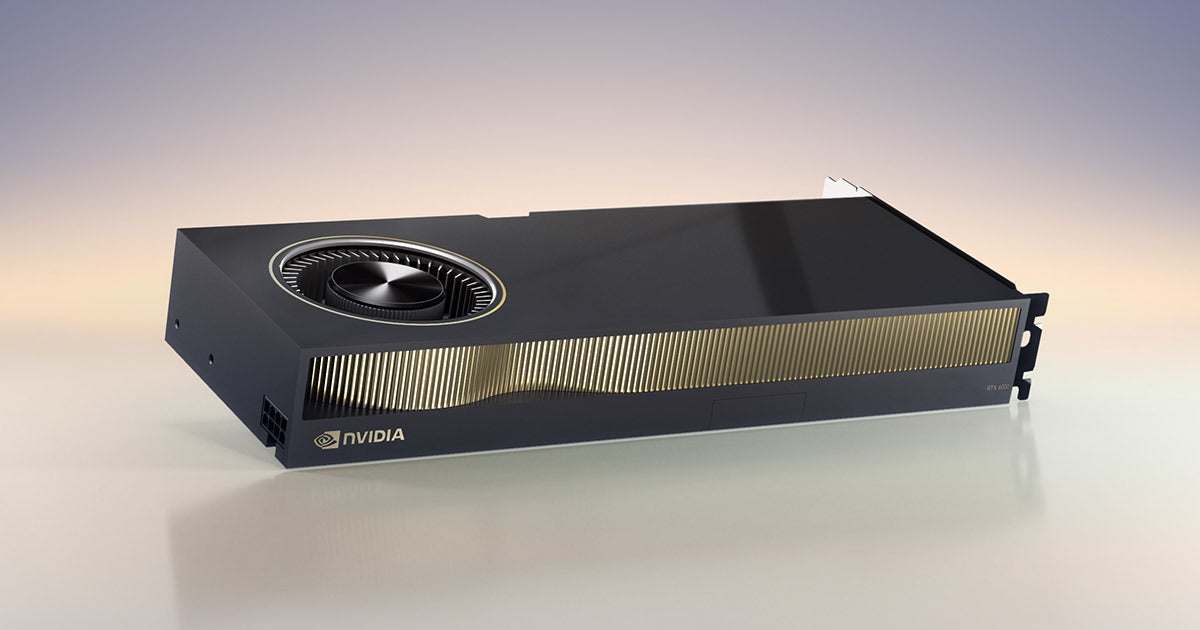

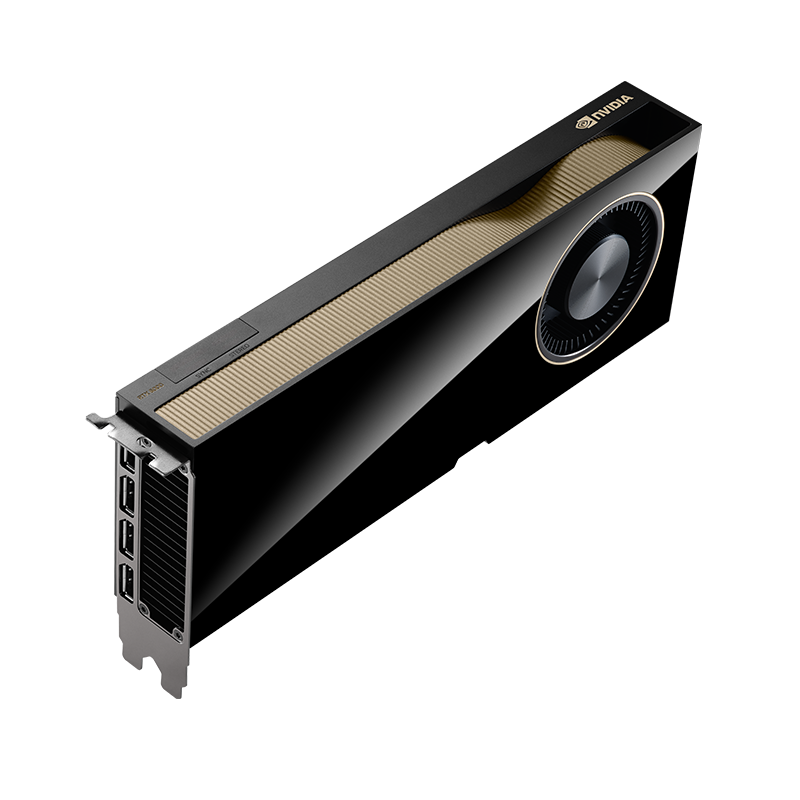

RTX 6000 ADA 900-5G133-0150-001 NVIDIA GPU 48GB GDDR6 X 4
NVIDIA RTX 6000 Ada Generation 48 GB GDDR6 GPU (900‑5G133‑0150‑001)
Professional-Grade GPU - Massive Memory, ECC, and Ada Lovelace Power
The NVIDIA RTX 6000 Ada Generation is built for professional applications like rendering, simulation, AI inference, and content creation. Based on the Ada Lovelace architecture, it delivers industry-leading performance with 18,176 CUDA cores, 568 fourth-gen Tensor Cores, and 142 third-gen RT Cores. With 48 GB GDDR6 ECC memory, 384-bit memory interface, and up to 960 GB/s bandwidth, it handles large datasets and complex workloads with ease.
This full-height, dual-slot GPU uses a blowers-style active cooler, draws up to 300 W, and connects via PCIe 4.0 x16, with four DisplayPort 1.4 outputs. It's a premium choice for visual computing in workstations and data-rich professional environments.
🔧 Product Specifications for RTX 6000 ADA 900-5G133-0150-001 NVIDIA GPU 48GB GDDR6 X4
| Feature | Details |
|---|---|
| Model / Part Number | NVIDIA RTX 6000 Ada Gen – 900‑5G133‑0150‑001 |
| Architecture | ADA Lovelace (TSMC 4 nm) |
| CUDA Cores | 18,176 |
| Tensor Cores | 568 (4th Gen) |
| RT Cores | 142 (3rd Gen) |
| GPU Memory | 48 GB GDDR6 with ECC |
| Memory Interface / Bandwidth | 384-bit / 960 GB/s |
| Max Power Consumption | 300 W |
| Interface | PCI Express 4.0 x16 |
| Form Factor | Dual-slot, full-height GPU |
| Cooling | Active blower-style fan |
| Display Outputs | 4 × DisplayPort 1.4 |
| MIG / Multi-GPU Support | Not applicable (workstation GPU) |
| VR-Ready | Yes |
| Typical Use Cases | Pro graphics, AI inference, simulation, CAD, VDI |
| Weight & Dimensions | ≈ 4.4" H × 10.5" L; ~2.5 kg / ~5.5 lbs (estimated) |
❓ Frequently Asked Questions (FAQs)
Q1: What are the main advantages of RTX 6000 Ada over older models?
A: It features significantly more CUDA, RT, and Tensor cores along with ECC memory and 960 GB/s bandwidth - ideal for high-end rendering, AI, and graphics work with up to 2× the FP32 throughput over previous generation GPUs.
Q2: How much power does the RTX 6000 Ada require?
A: Rated at 300 W maximum, requiring a 16-pin PCIe power connector. Ensure sufficient PSU and airflow bandwidth.
Q3: Does this model support NVLink or PCIe bifurcation?
A: No, this professional GPU does not support NVLink. It operates entirely using PCIe 4.0 x16.
Q4: Can it run real-time ray tracing and AI inferencing?
A: Yes - with 142 RT Cores and 568 Tensor Cores (including FP8 support), it's optimized for complex rendering, simulation, and inference tasks.
Q5: What display configurations are supported?
A: The card includes 4 DisplayPort 1.4 outputs, supporting resolutions up to 7680×4320 at 60 Hz - or multiple 5K displays simultaneously.
