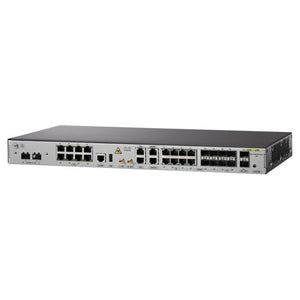

A901-6CZ-FT-A Cisco ASR 901 10G Router, Ethernet/TDM Interfaces AC
A901-6CZ-FT-A Cisco ASR 901 10G Aggregation Services Router with Ethernet & TDM Interfaces
Compact and Carrier-Class Router for Mobile Backhaul and Metro Ethernet Deployments
Cisco ASR 901 A901-6CZ-FT-A Router – High-Performance Metro & Mobile Backhaul Solution
The Cisco ASR 901 A901-6CZ-FT-A is a compact, environmentally hardened, and high-performance router purpose-built for service provider mobile backhaul, metro Ethernet aggregation, and business service delivery. Engineered to support both Ethernet and TDM interfaces, this 1RU platform offers full 10G aggregation capabilities, making it ideal for carriers and enterprises transitioning from legacy networks to next-generation IP/MPLS infrastructures.
With a switching capacity of up to 40 Gbps and a packet forwarding rate of 30 Mpps, the ASR 901 ensures low-latency, high-throughput connectivity for demanding applications. It supports IPv4/IPv6, MPLS, Layer 2/3 VPNs, and advanced clocking protocols such as SyncE and IEEE 1588v2 for precise network synchronization. Designed for harsh environments, this fanless router operates in extreme temperatures ranging from -40°C to 65°C, ensuring reliable performance in outdoor and industrial deployments.
The Cisco ASR 901 also features MEF-compliant Carrier Ethernet, advanced QoS, MPLS TE, VPLS, and L2/L3 VPN services, making it a powerful solution for mobile operators, service providers, and enterprise networks looking to scale their infrastructure while maintaining high availability.
The Cisco ASR 901 A901-6CZ-FT-A delivers the performance, reliability, and scalability required to build next-generation metro and mobile backhaul networks, making it an ideal choice for service providers and enterprises seeking future-ready network infrastructure.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications – Cisco ASR 901 A901-6CZ-FT-A
CLICK HERE DATA SHEET
Specification | Details |
---|---|
Model Number | A901-6CZ-FT-A |
Product Description | Cisco ASR 901 A901-6CZ-FT-A is a compact, environmentally hardened, high-performance router designed for service provider mobile backhaul, business services, and metro Ethernet applications. It supports both Ethernet and TDM interfaces with full 10G aggregation capabilities. |
Interfaces & Ports | - 6 x Combo GE interfaces (SFP or RJ45) - 2 x 10GE SFP+ ports - 2 x OC3/STM1 or T1/E1 interfaces for TDM support - 1 x Console port - 1 x Management Ethernet port - Alarm I/O and GPS timing port |
Performance & Capacity | - Switching capacity: Up to 40 Gbps - Packet forwarding rate: Up to 30 Mpps - Supports IPv4/IPv6, MPLS, Layer 2/3 VPNs - Enhanced clocking with SyncE, IEEE 1588v2, and BITS |
Key Features | - Carrier Ethernet services with MEF compliance - Advanced QoS for traffic shaping and prioritization - MPLS TE, VPLS, L2VPN, and L3VPN capabilities - TDM pseudowire for legacy service migration - High-availability features with FRR, BFD, and Ethernet OAM |
Hardware & Design | - Compact 1RU fixed chassis - AC power supply (110–240V AC input) - Fanless design for silent operation - Rugged, environmentally hardened design |
Environmental Specs | - Operating temperature: -40°C to 65°C - Storage temperature: -40°C to 70°C - Humidity: 5% to 95% non-condensing |
Dimensions & Weight | - Dimensions: 1.72 x 17.5 x 9.5 in (H x W x D) - Weight: ~8 lbs (3.6 kg) |
Management & Software | - Managed via Cisco IOS - Supports CLI, SNMPv3, RMON, NetFlow - Remote software upgrade and secure management - Compatible with Cisco Prime and EPN Manager |
Power | AC input: 110–240V AC, 50/60Hz |
Compliance & Standards | MEF-compliant Carrier Ethernet, IEEE 1588v2, SyncE |
Typical Use Cases | - Service provider mobile backhaul - Metro Ethernet aggregation - Business services and TDM migration |
FAQs for A901-6CZ-FT-A:
Can the ASR 901 router be deployed in outdoor or harsh environments?
Yes, it is environmentally hardened and supports temperature ranges from -40°C to 65°C, making it ideal for rugged field deployments.
Does this router support both Ethernet and legacy TDM services?
Yes, it supports Ethernet (1G/10G) as well as TDM interfaces like T1/E1 and OC3/STM1 for smooth transition in hybrid networks.
Is the A901-6CZ-FT-A compatible with IEEE 1588v2 for precision timing?
Yes, it supports IEEE 1588v2 and Synchronous Ethernet for precise timing in mobile backhaul and other time-sensitive applications.
What kind of power supply does the A901-6CZ-FT-A use?
This model uses an integrated AC power supply, making it suitable for standard enterprise or service provider environments.
Is the ASR 901 managed through Cisco IOS?
Yes, it is managed via Cisco IOS and supports CLI, SNMP, and Cisco Prime for full-service management.
