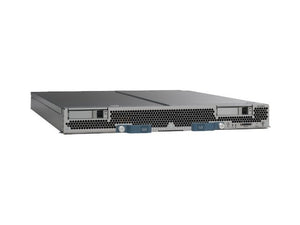

N20-B6620-2 Cisco UCS B250 M1 Blade Server w/o CPU, memory, HDD, mezzanine
Cisco UCS B250 M1 – Scalable Blade Server for Unified Computing Environments
Flexible and High-Density Cisco UCS B250 M1 Blade Server for Enterprise Workloads
Boost your data center’s performance with the Cisco UCS B250 M1 Blade Server, a high-density, energy-efficient solution designed for enterprise virtualization and cloud applications. This modular server, shipped without CPU, memory, HDD, or mezzanine card, offers unmatched flexibility for custom configurations, allowing businesses to tailor it precisely to their performance and scalability needs. As part of the Cisco Unified Computing System (UCS) portfolio, the B250 M1 delivers robust support for high-bandwidth applications across data, voice, and video networks. Engineered for secure, high-performance, and reliable operations, it’s ideal for both public and private cloud environments. Perfect for IT environments seeking cost-effective, high-density compute resources with maximum interoperability and future-ready infrastructure.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications: Cisco N20-B6620-2 Full-Width Blade Server (Data Sheet)
| Specification | Details |
|---|---|
| Model Number | Cisco N20-B6620-2 |
| Form Factor | Full-width blade server (fits in Cisco UCS 5108 chassis) |
| Dimensions (H x W x D) | 2.5 in × 8.0 in × 24.4 in (6.35 cm × 20.32 cm × 62 cm) |
| Weight (Fully Configured) | Approx. 32 lbs (14.5 kg) |
| Processor Support | 2 × Intel Xeon 5500/5600 Series (Nehalem/Westmere) (Not included) |
| CPU Sockets | 2 |
| Memory (Max Capacity) | Up to 384GB DDR3 RAM across 48 DIMM slots |
| Drive Bays | Supports up to 2 × 2.5” SAS/SATA/SSD drives (Drives not included) |
| RAID Support | RAID 0 and RAID 1 (via Cisco UCS RAID controller) |
| Mezzanine Expansion Slots | 2 × Mezzanine slots for Cisco VIC adapters (not included) |
| Networking & Connectivity | Requires Cisco UCS 5108 chassis and Cisco VIC adapters for networking |
| Supported Interfaces | Ethernet, Fibre Channel (via VIC adapters) |
| Power Supply | Powered by Cisco UCS 5108 Blade Chassis |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | -40°F to 149°F (-40°C to 65°C) |
| Use Case | Enterprise computing, virtualization, private cloud deployments |
FAQs for Cisco UCS B250 M1
1. Does the Cisco UCS B250 M1 include a CPU, RAM, or storage?
No, this is a barebone blade server and requires CPUs, memory, hard drives, and mezzanine adapters to be installed separately.
2. What is the maximum RAM supported?
The UCS B250 M1 supports up to 384GB of RAM using 48 DIMM slots (8GB DDR3 modules).
3. Can this server operate without a UCS chassis?
No, it must be installed in a Cisco UCS 5108 Blade Chassis for power, cooling, and network connectivity.
4. What processors are compatible with the UCS B250 M1?
It supports Intel Xeon 5500 and 5600 series CPUs (Nehalem/Westmere architecture).
5. What mezzanine adapters are supported?
It supports Cisco VIC (Virtual Interface Cards) for Ethernet and Fibre Channel over Ethernet (FCoE) connectivity.
