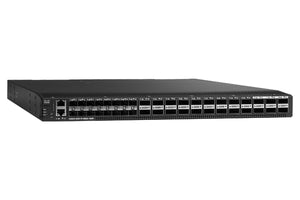

UCS-FI-6332-16UP Cisco UCS 6332-16UP 40-port Fabric Interconnect
Cisco UCS-FI-6332-16UP – 40-Port Fabric Interconnect for Unified Computing Environments
High-Speed 40-Port Cisco UCS 6332-16UP Fabric Interconnect for Scalable and Unified Data Center Fabrics
Cisco UCS-FI-6332-16UP Fabric Interconnect – High-Performance Unified Fabric for UCS Systems
The Cisco UCS-FI-6332-16UP Fabric Interconnect is the centralized management and high-speed communication backbone for Cisco UCS B-Series Blade Servers, C-Series Rack Servers, and 5100 Series Blade Server Chassis. Designed for enterprise-class data centers and mission-critical workloads, this advanced 1RU switch delivers unmatched scalability, performance, and simplified management.
Featuring 40 ports in a compact 1RU form factor, the UCS-FI-6332-16UP includes:
-
24 Unified Ports supporting 1/10/25 GbE, Fibre Channel over Ethernet (FCoE), or 4/8/16-Gb Fibre Channel for SAN connectivity
-
16 QSFP+ Ports supporting 40-GbE with breakout capability for 4 × 10-GbE links
With 2.43 Tbps of aggregate throughput, Cisco UCS Manager integration, and unified fabric architecture, the UCS-FI-6332-16UP consolidates LAN and SAN traffic into a single, simplified network fabric. Cisco SingleConnect® technology enables a single, intelligent connection for rack and blade servers, delivering unified management for LAN, SAN, and systems administration.
Key benefits include:
-
High scalability – Supports up to 20 chassis in a single domain without additional complexity using Cisco Fabric Extender technology
-
Optimized for virtualization – Integrated VM-FEX (Virtual Machine Fabric Extender) for consistent networking and security policies across physical and virtual environments
-
Enterprise reliability – Redundant hot-swappable power supplies, front-to-back airflow, and advanced cooling for 24/7 operation
The Cisco UCS-FI-6332-16UP Fabric Interconnect is the ideal choice for cloud computing, virtualized data centers, and high-performance computing (HPC) deployments, delivering superior bandwidth, centralized control, and simplified cabling to reduce operational costs.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Here is a refined and well-organized Product Specifications Table for the Cisco UCS-FI-6332-16UP – Fabric Interconnect, perfect for your data sheets, product listings, or Shopify page:
Product Specifications: Cisco UCS-FI-6332-16UP – UCS Fabric Interconnect (Data Sheet)
| Category | Specification |
|---|---|
| Form Factor | 1RU Rack-Mountable |
| Dimensions (H × W × D) | 1.72 in × 17.3 in × 19.7 in (4.37 cm × 43.94 cm × 50.04 cm) |
| Weight | Approx. 22 lbs (10 kg) |
| Total Ports | 40 ports (24 unified + 16 QSFP+) |
| Unified Ports | 24 × ports supporting 1/10/25 GbE or 4/8/16 Gb Fibre Channel (FC) |
| QSFP+ Ports | 16 × 40 GbE QSFP+, each breakout-capable to four 10 GbE links |
| Switching Capacity | Up to 2.56 Tbps virtual throughput |
| Forwarding Performance | Up to 1.45 Bpps (billion packets per second) |
| Unified Port Configuration | Flexible use as Ethernet or FC via software settings |
| Compatibility | Seamlessly works with Cisco UCS Manager and UCS blade or rack servers |
| Power Supplies | Dual hot-swappable 650W AC modules for redundancy |
| Cooling | Redundant fans with front-to-back airflow; field-replaceable |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
FAQs for Cisco UCS-FI-6332-16UP
1. What is a Unified Port in this interconnect?
Unified Ports support either Ethernet or Fibre Channel, allowing flexible connectivity for LAN and SAN traffic.
2. Can I use breakout cables on the 40G QSFP+ ports?
Yes, each 40G QSFP+ port can be split into 4 × 10G Ethernet ports using breakout cables.
3. Is this compatible with all UCS servers?
Yes, it's compatible with all Cisco UCS B-Series (blade) and C-Series (rack) servers via Fabric Extenders (FEX).
4. How is the UCS-FI-6332-16UP managed?
It is managed through Cisco UCS Manager, enabling centralized management of compute, network, and storage components.
5. Can it be used for Fibre Channel SAN connectivity?
Yes, the unified ports can be configured as native Fibre Channel ports (up to 16G FC) for SAN integration.
