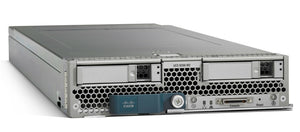

UCSB-B200-M3-E Cisco UCS B200 M3 w/ Dual 8C 2.7GHz E5-2680 CPU, Dual 300GB HDD, 768GB RAM
Cisco UCS B200 M3 – High-Performance Blade Server with Dual 8-Core CPUs
Scalable and Reliable Cisco UCS B200 M3 Blade Server for Enterprise Workloads
Boost Enterprise Performance with Cisco UCS B200 M3 Blade Server
The Cisco UCSB-B200-M3-E Blade Server is a powerful and scalable half-width server engineered for today’s demanding data center environments. Built on the Intel® Xeon® E5-2600 and E5-2600 v2 processor family, this high-performance blade server supports up to 768GB of DDR3 RAM, delivering the compute power needed for virtualization, database processing, and enterprise applications.
Designed to fit in the Cisco UCS 5108 chassis, the UCS B200 M3 offers flexible expansion, supporting up to 2 local drives and high-speed 80Gbps fabric connectivity via Cisco VIC adapters. With unified fabric architecture, it significantly reduces the need for multiple NICs, HBAs, and switches—lowering both infrastructure complexity and total cost of ownership (TCO).
Additional features such as auto-discovery, advanced monitoring tools, and mezzanine adapter support make it ideal for IT infrastructure, web applications, and distributed databases. The UCS B200 M3 enhances the agility of Cisco's Unified Computing System, offering unmatched performance, efficiency, and manageability in a compact form factor.
Note - this is a custom configuration with dual 8C 2.7GHz E5-2680 CPU, Dual 300GB HDD, and 768GB RAM.
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications: Cisco UCSB-B200-M3-E Blade Server
More Information: (Data Sheet)
| Category | Specification |
|---|---|
| Model Number | Cisco UCSB-B200-M3-E |
| Form Factor | Half-width blade server (fits in Cisco UCS 5108 chassis) |
| Dimensions (H × W × D) | 2 in × 8 in × 24.4 in (5.08 cm × 20.32 cm × 62 cm) |
| Weight (Fully Configured) | Approx. 24 lbs (10.9 kg) |
🔧 Processor & Memory
| CPU Configuration | 2 × Intel Xeon E5-2680 v2 (8 cores per CPU, 2.7 GHz) |
| Total Cores / Threads | 16 cores / 32 threads |
| Installed RAM | 768GB DDR3 |
| Max RAM Capacity | Up to 768GB across 24 DIMM slots |
💾 Storage & Expansion
| Storage Drives | 2 × 300GB 2.5” SAS HDDs |
| RAID Support | RAID 0 and RAID 1 (via Cisco UCS storage controller) |
| PCIe Slots | Uses Cisco VIC adapters for networking and storage expansion |
🌐 Networking & Connectivity
| Chassis Compatibility | Requires Cisco UCS 5108 Blade Chassis |
| Network Speed | Supports Cisco VIC adapters for up to 40Gbps network connectivity |
⚡ Power & Cooling
| Power Supply Source | Receives power from UCS 5108 chassis (not included) |
🌡️ Environmental Conditions
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | -40°F to 149°F (-40°C to 65°C) |
FAQs for Cisco UCS B200 M3
1. Can the Cisco UCS B200 M3 operate as a standalone server?
No, it requires a Cisco UCS 5108 Blade Chassis for power, cooling, and network connectivity.
2. What is the maximum memory supported in this server?
The UCS B200 M3 supports up to 768GB of DDR3 RAM using 24 DIMM slots.
3. What storage options are available?
It supports up to two 2.5” SAS, SATA, or SSD drives, with RAID 0 and RAID 1 configurations.
4. What networking speeds does this server support?
With the appropriate Cisco VIC adapter, it can support up to 40Gbps network connectivity.
5. Is this blade server managed via Cisco UCS Manager?
Yes, it is fully managed through Cisco UCS Manager, enabling centralized control of compute, networking, and storage resources.
