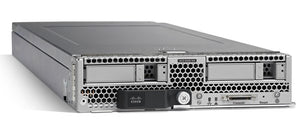

UCSB-B200-M4-C Cisco UCS B200 M4 w/ Dual 10C 2.3GHz E5-2650v3 CPU, Dual 300GB HDD, 128GB RAM
Cisco UCS B200 M4 – Dual 10-Core Blade Server with 128GB RAM and Dual 300GB Drives
Powerful and Scalable Cisco UCS B200 M4 Blade Server for Virtualized and Enterprise Workloads
Cisco UCSB-B200-M4-C – Blade Server | 2 x Intel Xeon E5-2650 v3 | 128GB DDR4 RAM | Enterprise-Grade Performance
The Cisco UCSB-B200-M4-C Blade Server is a high-performance, space-efficient computing solution built for data centers and enterprise IT environments. Designed to fit into the Cisco UCS 5108 Blade Chassis, this half-width blade server delivers industry-leading performance, scalability, and reliability in a compact form factor.
Powered by dual Intel Xeon E5-2650 v3 processors, each with 10 cores running at 2.3GHz, this server supports 20 cores and 40 threads, making it ideal for virtualization, enterprise applications, and private cloud deployments. With 128GB of DDR4 RAM—expandable up to 1.5TB—it handles demanding workloads with ease.
The Cisco UCS B200 M4 Blade Server provides versatility to costumers by addressing the extensive set of workloads, from IT and web infrastructure to distributed database. This Cisco Blade Server is built with the Intel® Xeon® E5-2600 v4 and v3 processor family, up to 1.5 TB of memory (with 64 GB DIMMs), up to two drives, and up to 80 Gbps total bandwidth. With the programmability of the UCS Manager and simplified server access of SingleConnect technology, the Cisco UCS B200 M4 Blade Server can quickly deploy stateless physical and virtual workloads. With it's architectural design there is no need to power and cool switches in each blade chassis.
Note - this is a custom configuration with dual 10C 2.3GHz E5-2650v3 CPU, Dual 300GB HDD, and 128GB RAM.
AS/NZS 60950-1 , BSMI CNS 13438 Class A , CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 Second Edition , Directive 2004/108/EC , Directive 2006/95/EC , EN 300386 , EN 60950-1 Second Edition , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , GB 4943 , ICES-003 Class A , IEC 60950-1 Second Edition , KN22 Class A , KN24 , UL 60950-1 Second Edition , VCCI Class A
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications: Cisco UCSB-B200-M4-C – Blade Server (Data Sheet)
| Category | Specification |
|---|---|
| Form Factor | Half-width blade server (fits in Cisco UCS 5108 chassis) |
| Dimensions (H × W × D) | 2 in × 8 in × 24.4 in (5.08 cm × 20.32 cm × 62 cm) |
| Weight | Approx. 24 lbs (10.9 kg) (fully configured) |
| Processor | 2 × Intel Xeon E5-2650 v3 (10 cores per CPU, 2.3 GHz) |
| Total Cores/Threads | 20 cores / 40 threads |
| RAM | 128GB DDR4 (expandable up to 1.5TB across 24 DIMM slots) |
| Storage | 2 × 300GB 2.5" SAS HDDs |
| RAID Support | RAID 0 and RAID 1 via onboard controller |
| Expansion Slots | 2 × Mezzanine slots for Cisco VIC adapters |
| Connectivity | Requires Cisco UCS 5108 Blade Chassis; supports Cisco VIC adapters for up to 40Gbps |
| Power Source | Powered through UCS chassis |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | -40°F to 149°F (-40°C to 65°C) |
FAQs for Cisco UCS B200 M4 (UCSB-B200-M4-C)
1. What is the total memory capacity of the UCS B200 M4?
It supports up to 1.5TB of DDR4 RAM using 24 DIMM slots with 64GB modules.
2. What chassis is required to operate this blade server?
The B200 M4 must be installed in a Cisco UCS 5108 Blade Chassis for power, cooling, and network connectivity.
3. Does the server support virtualization workloads?
Yes, with dual 10-core CPUs and 128GB RAM, it's well-suited for VMware, Hyper-V, and other virtualized environments.
4. Can I upgrade the storage drives?
Yes, the server supports 2.5" SAS, SATA, or SSD drives up to the chassis-supported limits.
5. What is the role of Cisco VIC adapters in this server?
Cisco VIC (Virtual Interface Cards) provide high-speed, low-latency I/O, supporting Ethernet and Fibre Channel over Ethernet (FCoE).
