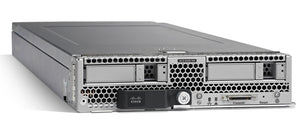

UCSB-B200-M4-D Cisco UCS B200 M4 w/ Dual 12C 2.6GHz E5-2690v3 CPU, Dual 300GB HDD, 128GB RAM
Cisco UCS B200 M4 – High-Performance Blade Server with Dual 12-Core CPUs
Powerful and Scalable Cisco UCS B200 M4 Blade Server for Enterprise Workloads
The Cisco UCS B200 M4 Blade Server provides versatility to costumers by addressing the extensive set of workloads, from IT and web infrastructure to distributed database. This Cisco Blade Server is built with the Intel® Xeon® E5-2600 v4 and v3 processor family, up to 1.5 TB of memory (with 64 GB DIMMs), up to two drives, and up to 80 Gbps total bandwidth. With the programmability of the UCS Manager and simplified server access of SingleConnect technology, the Cisco UCS B200 M4 Blade Server can quickly deploy stateless physical and virtual workloads. With it's architectural design there is no need to power and cool switches in each blade chassis.
Note - this is a custom configuration with dual 12C 2.6GHz E5-2690v3 CPU, Dual 300GB HDD, and 128GB RAM.
AS/NZS 60950-1 , BSMI CNS 13438 Class A , CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1 Second Edition , Directive 2004/108/EC , Directive 2006/95/EC , EN 300386 , EN 60950-1 Second Edition , EN 61000-3-2 , EN 61000-3-3 , EN55022 Class A , EN55024 , GB 4943 , ICES-003 Class A , IEC 60950-1 Second Edition , KN22 Class A , KN24 , UL 60950-1 Second Edition , VCCI Class A
Product Specifications: Cisco UCSB-B200-M4-D Blade Server (Data Sheet)
| Specification | Details |
|---|---|
| Model Number | UCSB-B200-M4-D |
| Form Factor | Half-width blade server (fits in Cisco UCS 5108 chassis) |
| Dimensions (H × W × D) | 2 in × 8 in × 24.4 in (5.08 cm × 20.32 cm × 62 cm) |
| Weight (Fully Configured) | Approx. 24 lbs (10.9 kg) |
| Processor | 2 × Intel Xeon E5-2690 v3 (12 cores per CPU, 2.6 GHz) |
| Total Cores / Threads | 24 cores / 48 threads |
| Memory (RAM) | 128GB DDR4 (expandable up to 1.5TB across 24 DIMM slots) |
| Storage | 2 × 300GB 2.5" SAS HDDs |
| RAID Support | RAID 0 and RAID 1 (via Cisco UCS storage controller) |
| Expansion Slots | Uses Cisco VIC adapters for networking and storage expansion |
| Networking | Supports Cisco VIC adapters with up to 40Gbps connectivity |
| Chassis Compatibility | Requires Cisco UCS 5108 Blade Chassis |
| Power Supply | Receives power from UCS 5108 chassis (not included) |
| Operating Temperature | 50°F to 95°F (10°C to 35°C) |
| Storage Temperature | -40°F to 149°F (-40°C to 65°C) |
| Advanced Features | Integrated with Cisco UCS Manager; Unified I/O architecture |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs for Cisco UCS B200 M4
1. Can the Cisco UCS B200 M4 operate as a standalone server?
No, it requires a Cisco UCS 5108 Blade Chassis for power, cooling, and network connectivity.
2. How many DIMM slots are available for memory expansion?
The UCS B200 M4 supports 24 DIMM slots, allowing for up to 1.5TB of RAM with 64GB DIMMs.
3. What types of storage drives are compatible with this server?
It supports 2.5" SAS, SATA, and SSD drives, with RAID 0 and RAID 1 configurations.
4. What is the maximum networking speed supported?
With the appropriate Cisco VIC adapter, it can support up to 40Gbps network connectivity.
5. Is this blade server compatible with Cisco UCS Manager?
Yes, it is fully managed through Cisco UCS Manager, enabling centralized control of compute, networking, and storage resources.
