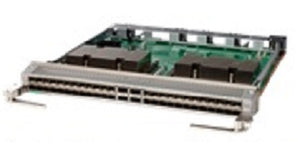

N9K-X97160YC-EX Cisco Nexus 9500 48-port 10/25GE+4x40/100GE Linecard
N9K-X97160YC-EX Cisco Nexus 9500 48-Port 10/25GE + 4x100GE Line Card
High-Density, Low-Latency 25G/100G Line Card for Cisco Nexus 9500 Modular Data Center Switches
The Cisco Nexus N9K-X97160YC-EX is a high-performance, next-generation line card designed for Cisco Nexus 9500 modular switches. Featuring 48 x 1/10/25-Gigabit Ethernet SFP28/SFP+ ports and 4 x 40/100-Gigabit Ethernet QSFP+/QSFP28 uplinks, this module delivers exceptional 3.2 Tbps throughput and ultra-low latency, making it ideal for leaf-and-spine architectures, cloud-scale networks, and enterprise data centers.
Built for the future of data center networking, the N9K-X97160YC-EX supports Cisco ACI (Application Centric Infrastructure), VXLAN EVPN, Segment Routing (SR), and MPLS, enabling seamless network virtualization and automated operations. With hot-swappable design, non-blocking architecture, and advanced programmability via gRPC, NETCONF, and YANG, it ensures maximum uptime and scalability for mission-critical workloads.
Perfect for organizations planning 25G/100G upgrades, the Cisco N9K-X97160YC-EX provides the flexibility, speed, and reliability needed to power next-generation cloud, enterprise, and high-performance computing environments.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications – Cisco Nexus N9K-X97160YC-EX Line Card
CLICK HERE FOR DATA SHEET
| Specification | Details |
|---|---|
| Model Number | Cisco Nexus N9K-X97160YC-EX |
| Description | High-performance, high-density line card for Cisco Nexus 9500 modular switches, offering 48 x 10/25-Gigabit Ethernet ports and 4 x 40/100-Gigabit Ethernet uplinks for next-generation leaf-and-spine data center architectures. |
| Ports & Interfaces | • 48 x 1/10/25-Gigabit Ethernet ports (SFP28/SFP+) • 4 x 40/100-Gigabit Ethernet ports (QSFP+/QSFP28) • Auto-negotiation and breakout supported on 100G ports • Compatible with Cisco SFP+, SFP28, QSFP+ and QSFP28 optics and cables |
| Performance | • Aggregate throughput: Up to 3.2 Tbps • Line-rate performance on all ports • Ultra-low latency for high-frequency trading and real-time applications • Jumbo frame support: up to 9216 bytes |
| Key Features | • Fully non-blocking architecture for maximum performance • VXLAN routing and bridging for overlay networks • Segment Routing (SR), EVPN, and MPLS support • Advanced telemetry and model-driven programmability (gRPC/NETCONF/YANG) • Cisco ACI (Application Centric Infrastructure) support for automated policy-based networking |
| Software & Compatibility | • Runs Cisco NX-OS operating system • Compatible with Cisco Nexus 9500 chassis models (N9K-C9504, N9K-C9508, N9K-C9516) • Can be mixed with other Nexus 9500 line cards • Supports network virtualization and automation via Cisco DCNM and Cisco NDFC |
| High Availability & Redundancy | • Hot-swappable for zero-downtime maintenance • Redundant supervisor engine support in the modular 9500 architecture • Supports ISSU (In-Service Software Upgrade) and NSF (Non-Stop Forwarding) for uninterrupted operation |
| Environmental & Physical | • Form Factor: Line card for Cisco Nexus 9500 modular switches • Operating temperature: 0°C to 40°C (32°F to 104°F) • Power consumption: ~350–400W (depending on configuration) |
| Use Cases | • High-performance data center aggregation and spine deployments • Cloud-scale VXLAN/EVPN fabrics • Enterprise core networks requiring 25G/100G migration readiness |
| Management & Monitoring | • Advanced telemetry and analytics with Cisco model-driven telemetry • Programmable via APIs including gRPC, REST, NETCONF, and YANG • Compatible with Cisco Nexus Dashboard Fabric Controller (NDFC) and Cisco Data Center Network Manager (DCNM) |
FAQs for N9K-X97160YC-EX:
Can I use all ports at 25G simultaneously on this line card?
Yes, all 48 SFP28 ports support full 25G line-rate operation when the appropriate transceivers and licensing are in place.
What types of uplinks are supported on the QSFP ports?
The 4 QSFP ports support 40G and 100G speeds and can be broken out into 4x10G or 4x25G lanes using breakout cables.
Is the N9K-X97160YC-EX compatible with all Nexus 9500 chassis models?
Yes, it is compatible with the Cisco Nexus 9504, 9508, and 9516 chassis when running supported NX-OS versions.
Does this line card support Cisco ACI fabric deployments?
Absolutely, it is optimized for both classic NX-OS and Cisco ACI fabric mode deployments, supporting ACI spine or leaf roles.
Is this line card hot-swappable?
Yes, the N9K-X97160YC-EX is hot-swappable and supports in-service upgrades and changes in supported environments.
