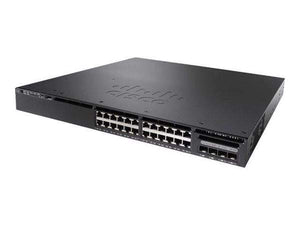

WS-C3650-24PD-E Cisco Catalyst 3650 24-port GigE PoE+ Switch with 2x10G Uplinks, IP Services
WS-C3650-24PD-E Cisco Catalyst 3650 24-Port PoE+ Gigabit Switch with 2x10G Uplinks and IP Services
Advanced Layer 3 Switch with Full PoE+ Support, 10G Uplinks, and Enhanced Routing for Scalable Enterprise Networks
Boost the performance, scalability, and security of your enterprise network with the Cisco Catalyst WS-C3650-24PD-E switch. Designed for next-generation campus and access layer deployments, this powerful Layer 3 switch delivers 24 Gigabit Ethernet PoE+ ports and 2 x 10G SFP+ uplinks, making it ideal for high-demand environments such as large offices, educational campuses, and data-driven enterprises.
Powered by the IP Services feature set, the WS-C3650-24PD-E supports advanced routing protocols like OSPF, EIGRP, BGP, and PIM, enabling seamless Layer 3 operations, multicast routing, and policy-based networking. With a switching capacity of 88 Gbps and a forwarding rate of 65.47 Mpps, it ensures exceptional throughput and low latency for bandwidth-intensive applications.
This switch provides a PoE budget of up to 390W, delivering up to 30W per port to power IP phones, wireless access points, and surveillance cameras without the need for additional power adapters. Cisco’s StackWise-160 technology allows up to 9 switches to be stacked for simplified management and high availability.
Key security features such as 802.1X authentication, DHCP snooping, Dynamic ARP Inspection, and TrustSec protect your network from unauthorized access and threats, while Cisco DNA Center compatibility enables automation, monitoring, and streamlined management. Its energy-efficient design and hot-swappable redundant power supply support ensure reliable operation in mission-critical environments.
The Cisco Catalyst WS-C3650-24PD-E is the perfect choice for organizations seeking high-performance switching, reliable PoE power, and advanced routing features to build a secure and future-ready network.
Product Specifications – Cisco Catalyst WS-C3650-24PD-E
CLICK HERE FOR DATA SHEET
| Category | Details |
|---|---|
| Model Number | WS-C3650-24PD-E |
| Description | Enterprise-grade Cisco Catalyst 3650 Series switch offering 24 Gigabit Ethernet ports with full PoE+ support and 2 x 10G SFP+ uplinks. Powered by the IP Services feature set, it enables advanced Layer 3 routing, multicast, and security capabilities. Ideal for enterprise access layers needing robust power, speed, and scalability. |
| Interfaces & Ports | - 24 x 10/100/1000 Mbps RJ45 PoE+ Ethernet ports - 2 x 10-Gigabit SFP+ uplink ports - 1 x USB Type-A port for file transfer - 1 x RJ45 Console port - 1 x Ethernet Management port - Modular slot for optional uplinks - Redundant power supply support via external RPS or dual PSU |
| Performance & Features | - Switching Capacity: 88 Gbps - Forwarding Rate: 65.47 Mpps - PoE Budget: Up to 390W with default PSU, expandable with additional PSU - MAC Address Table: 32,000 entries - Routing Protocols: OSPF, EIGRP, BGP, PIM, RIP, Policy-Based Routing - Stacking: Cisco StackWise-160, stack up to 9 switches - Quality of Service: Comprehensive QoS with 8 queues per port - Multicast Support: PIM SM/DM/SSM, IGMPv3 snooping |
| Environmental & Hardware | - Operating Temperature: 0°C to 45°C (32°F to 113°F) - Form Factor: 1U Rack-mountable - Dimensions: 4.4 x 44.5 x 44.8 cm - Weight: ~6.8 kg (15 lbs) - Cooling: Front-to-back airflow with variable speed fans - Redundancy: Hot-swappable redundant power and fan modules |
| Power Requirements | - AC Input: 100–240V AC, 50/60 Hz - DC Input: Supported via optional RPS - Typical Power Draw: ~115W (without PoE load) - PoE Output: Up to 30W per port, IEEE 802.3at-compliant - Redundant Power Options: Supports Cisco RPS2300 or dual PSUs |
| Software & Management | - Operating System: Cisco IOS XE - Management Tools: CLI, Web UI, SNMP, RMON, NetConf/YANG, REST APIs - Security: 802.1X, TrustSec, Dynamic ARP Inspection, DHCP Snooping - Automation: Compatible with Cisco DNA Center, Ansible, Puppet, Chef - Monitoring: Flexible NetFlow, SPAN/RSPAN, IP SLA |
| Compatibility | - Works with Cisco Prime Infrastructure and DNA Center - Fully compatible with Cisco-approved SFP/SFP+ modules - Supports Smart Licensing and Software-Defined Access (SD-Access) |
| Additional Features | - Advanced IP Services for enhanced Layer 3 routing and multicast capabilities - Energy-efficient design with intelligent PoE management - High availability with optional dual redundant power supplies |
FAQs for WS-C3650-24PD-E:
What makes the IP Services license different from LAN Base or IP Base?
The IP Services feature set enables advanced routing (like BGP, OSPF, PBR), full multicast features, and Layer 3 scalability not available in lower-tier licenses.
Is this switch stackable for future expansion?
Yes, it supports Cisco StackWise-160 and can be stacked with up to 8 other 3650 switches, providing high availability and shared configuration.
How much PoE power can this model deliver?
With the default power supply, it supports up to 390W of PoE+. You can expand the power budget by adding a secondary PSU.
Are both uplink ports 10G capable?
Yes, both uplink ports are SFP+ and support 1G or 10G modules, offering high-speed fiber or copper connectivity.
Can this switch be used in a voice or surveillance-heavy network?
Absolutely. With full PoE+ support on all 24 ports and advanced QoS and multicast capabilities, it’s ideal for VoIP phones, IP cameras, and wireless access points.
