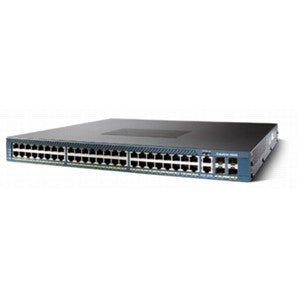

WS-C4948-S Cisco Catalyst 4948-S Switch
The Cisco Catalyst 4948-S Switch works well with multiple user classes, different department sub-domains and any other highly-segment IT structure due to it's DHCP Support and auto-negotiation. The 4948-S delivers wirespeed throughput with latency minimizing for certain applications. It includes 48 x 10/100/1000 Ports, Layer 2-4, 1-rack-unit fixed-configuration switch for rack-optimized server switching and hot-swap module replacement. The customer is able to decipher certain queues as higher importance, in comparison to others, so that you can enlarge the network and still benefit from the high speeds provided from the WS-C4948-S.
Device Type: Switch - 48 ports - L3 - managed
Form Factor: Rack-mountable
Dimensions (WxDxH): 17.3 in x 16.1 in x 1.7 in
Performance: Switching capacity : 96 Gbps ¦ Throughput : 72 Mpps
Features: Layer 3 switching, layer 2 switching, auto-sensing per device, IP-routing, auto-negotiation, BOOTP support, ARP support, trunking, Cisco Fast EtherChannel, VLAN support, Cisco Gigabit EtherChannel , IGMP snooping, ISL support, Syslog support, manageable, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), Time Domain Reflectometry (TDR), WCCP 2.0, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST)
Capacity: Active VLANs : 4096 ¦ Spanning Tree Protocol instances : 1500 ¦ Switched virtual interfaces (SVIs) : 2000 ¦ QoS hardware entries : 32000 ¦ Multicast entries (Layer 3) : 28000 ¦ Multicast entries (Layer 2) : 16000
Interfaces: 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x 10Base-T/100Base-TX - RJ-45 - management ¦ 1 x console - RJ-45 - management ¦ 4 x SFP (mini-GBIC)
Compliant Standards: NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, CSA 22.2 No. 60950, ICES-003 Class A, FCC CFR47 Part 15, IEC 825-1, IEC 825-2, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, EN 60950-1
