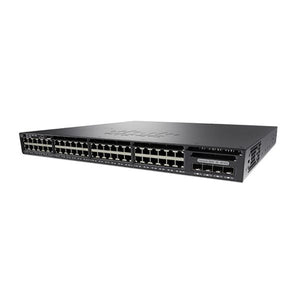

WS-C3650-48FQ-L Cisco Catalyst 3650 48p GigE Full PoE/4x10G Uplinks, LAN Base Switch
WS-C3650-48FQ-L Cisco Catalyst 3650 48-Port Full PoE+ Gigabit Switch with 4x10G SFP+ Uplinks
Enterprise-Grade Layer 3 LAN Base Switch with 48x PoE+ Ports and High-Speed 10G Uplinks for Scalable Network Deployments
Boost your enterprise network performance with the Cisco Catalyst WS-C3650-48FQ-L, a high-performance 48-Port Gigabit PoE+ Layer 3 switch designed for next-generation campus and access deployments. Engineered for scalability and reliability, this powerful switch delivers 48 full PoE+ Gigabit Ethernet ports and 4 x 10G SFP+ uplinks, making it ideal for powering devices such as IP phones, wireless access points, and surveillance cameras while ensuring seamless data transfer at lightning speeds.
Equipped with Cisco StackWise-160 technology, the WS-C3650-48FQ-L allows stacking of up to 9 switches with 160 Gbps stack bandwidth, ensuring high availability and easy network expansion. With a switching capacity of 160 Gbps and forwarding rate of 130.95 Mpps, this model provides the performance required for demanding enterprise environments.
Featuring advanced QoS, robust Layer 2 and Layer 3 support, and integrated security features such as 802.1X authentication, DHCP snooping, and Dynamic ARP Inspection, it protects your network from threats while delivering efficient traffic management. The LAN Base license ensures essential Layer 3 capabilities, with upgrade options to IP Base or IP Services for advanced routing protocols like OSPF, EIGRP, and BGP.
Designed for energy efficiency and reliability, the WS-C3650-48FQ-L supports redundant power supplies and hot-swappable fans, ensuring uninterrupted operations in mission-critical environments. Its PoE+ support of up to 30W per port (up to 775W total PoE budget) makes it ideal for modern smart offices, while Cisco DNA Center integration enables automation, simplified management, and future-ready network control.
Whether you need to power a growing enterprise campus, deploy smart building networks, or support high-bandwidth applications, the Cisco Catalyst WS-C3650-48FQ-L delivers exceptional performance, advanced security, and future-proof scalability, making it the perfect choice for next-generation enterprise networking.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications – Cisco Catalyst WS-C3650-48FQ-L Switch
CLICK HERE FOR DATA SHEET
| Specification | Details |
|---|---|
| Model Number | WS-C3650-48FQ-L |
| Product Description | High-performance Layer 3 switch from the Cisco Catalyst 3650 Series, designed for enterprise campus and access layer deployments. Features 48 full PoE+ Gigabit Ethernet ports and 4 x 10G SFP+ uplink interfaces, supporting Cisco StackWise-160 technology for high availability and scalable stacking. |
| Interfaces & Ports | • 48 x 10/100/1000 Mbps RJ45 PoE+ Ethernet ports • 4 x 10-Gigabit SFP+ uplink ports • 1 x USB Console port • 1 x RJ-45 Console port • 1 x 10/100/1000 Ethernet Management port • Modular uplink slot with optional network modules |
| Performance | • Switching Capacity: 160 Gbps • Forwarding Rate: 130.95 Mpps • MAC Address Table: 32,000 entries • PoE Budget: Up to 775W with additional power supplies |
| Layer Support | Layer 2 and basic Layer 3 (Static Routing, RIP) with LAN Base image; upgradeable to IP Base or IP Services for advanced routing features (OSPF, EIGRP, BGP). |
| Stacking | Cisco StackWise-160 technology, supports stacking of up to 9 switches with 160 Gbps stack bandwidth for high availability and scalability. |
| Quality of Service (QoS) | Advanced QoS with per-port traffic shaping, policing, and queuing for efficient bandwidth management. |
| Power & PoE | • AC Input: 100–240V AC, 50/60 Hz • DC Input: Optional external RPS support • Default Power Supply: 715W AC (upgradeable) • PoE Output: Up to 30W per port (802.3at) • Optional hot-swappable redundant power supplies and fans for high availability. |
| Environmental & Physical | • Operating Temperature: 0°C to 45°C (32°F to 113°F) • Rack Units: 1 RU (19” rack-mountable) • Dimensions: 4.4 x 44.5 x 44.8 cm • Weight: Approx. 7.5 kg (16.5 lbs) • MTBF: Approx. 265,750 hours • Cooling: Intelligent fan-based system with front-to-back airflow |
| Software & Management | • Operating System: Cisco IOS XE • Management Options: CLI, SNMP, WebUI, REST APIs, NetConf/YANG • Automation Tools: Cisco DNA Center, Puppet, Chef, Ansible • Monitoring: NetFlow Lite, Smart Install, RSPAN |
| Security Features | 802.1X authentication, DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard, Port Security, and advanced ACLs for enhanced network protection. |
| Compatibility | • Integrates with Cisco Prime Infrastructure and Cisco DNA Center • Compatible with Cisco SFP/SFP+ modules • Supports Cisco Smart Licensing |
| Certifications & Standards | IEEE 802.3at (PoE+), IEEE 802.1D Spanning Tree, IEEE 802.1Q VLAN tagging, IEEE 802.1p QoS, Energy Efficient Ethernet (EEE). |
This Cisco Catalyst WS-C3650-48FQ-L delivers enterprise-class performance, scalability, and security, making it ideal for large campus deployments, access layer networking, and PoE-powered devices such as IP phones, cameras, and wireless access points.
FAQs for WS-C3650-48FQ-L:
Does this switch support advanced Layer 3 routing?
Out of the box, it supports basic Layer 3 (static routing and RIP) with the LAN Base license. For advanced features like OSPF and EIGRP, you’ll need to upgrade to IP Base or IP Services.
Are the uplinks on this switch fixed or modular?
The 4x10G SFP+ uplinks are part of a modular uplink slot, allowing flexibility for fiber connectivity based on your needs.
Can this model be stacked with other Catalyst 3650 switches?
Yes, it fully supports Cisco StackWise-160 and can be stacked with other compatible Catalyst 3650 models for increased capacity and redundancy.
Is it suitable for powering IP cameras and phones?
Absolutely. It offers full PoE+ support on all 48 ports, with up to 775W total budget—ideal for IP phones, cameras, and wireless access points.
Does the WS-C3650-48FQ-L include a power supply by default?
Yes, it typically ships with one power supply included. Redundant power supplies can be added for increased uptime.
