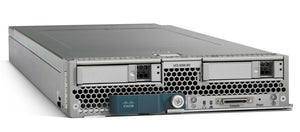

UCSB-B200-M3-C Cisco UCS B200 M3 w/ Dual 8C 2.7GHz E5-2680 CPU, Dual 300GB HDD, 384GB RAM
Cisco UCS B200 M3 – High-Performance Blade Server for Enterprise Workloads
Scalable Cisco UCS B200 M3 Blade Server with Dual Intel Xeon CPUs and High-Speed Storage
Cisco UCSB-B200-M3-C Blade Server – High-Performance, Scalable Computing for Enterprise Data Centers
The Cisco UCSB-B200-M3-C is a powerful half-width blade server engineered to deliver exceptional performance, scalability, and efficiency for modern enterprise workloads. Powered by up to two Intel Xeon E5-2600 or E5-2600 v2 series processors and supporting up to 768GB of DDR3 memory across 24 DIMM slots, this server is ideal for virtualization, cloud computing, and mission-critical applications.
Designed for the Cisco Unified Computing System (UCS), the B200 M3 combines compute, storage, and networking into a streamlined architecture that reduces total cost of ownership and simplifies management. With support for hot-swappable SAS, SATA, or SSD drives, integrated Cisco Virtual Interface Card (VIC) for high-speed Ethernet and FCoE, and dual mezzanine slots for flexible connectivity, it offers the versatility to handle diverse workloads with ease.
The UCSB-B200-M3-C also features enterprise-grade redundancy, advanced power efficiency, and remote management via Cisco UCS Manager with KVM over IP access. Whether deployed for virtualization clusters, large databases, or high-performance computing, it delivers the reliability, scalability, and speed needed for today’s demanding IT environments.
Note - this is a custom configuration with dual 8C 2.7GHz E5-2680 CPU, Dual 300GB HDD, and 384GB RAM.
CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications – Cisco UCSB-B200-M3-C Blade Server
Click Here for Data Sheet
| Category | Specification |
|---|---|
| Form Factor | Half-width blade server for Cisco UCS 5100 Series Blade Server Chassis |
| Processor (CPU) | Up to 2 × Intel Xeon E5-2600 or E5-2600 v2 series processors; Example: 2 × Intel Xeon E5-2680 (8-core, 2.7GHz) |
| Total CPU Sockets | 2 |
| Maximum Processor Cores | Up to 12 cores per CPU (model dependent) |
| Chipset | Intel C600 series chipset |
| Memory Capacity | Up to 768 GB DDR3 (using 32 GB DIMMs) across 24 DIMM slots; Supports DDR3 at speeds up to 1866 MHz |
| Storage Options | Up to 2 hot-swappable 2.5-inch SAS, SATA, or SSD drives; Example: Dual 300GB SAS HDDs |
| RAID Support | Integrated RAID 0 and RAID 1 support |
| Networking | Integrated Cisco Virtual Interface Card (VIC) 1240 or 1340 for high-speed Ethernet and FCoE |
| I/O Expansion | Two mezzanine adapter slots for additional connectivity (Ethernet, Fibre Channel, etc.) |
| Redundancy | Supports failover and high-availability configurations |
| Network Ports | High-speed Ethernet and Fibre Channel over Ethernet (FCoE) support |
| Virtualization Support | VMware, Microsoft Hyper-V, Citrix XenServer, and others |
| Management Interfaces | Cisco UCS Manager for centralized management; Remote KVM access |
| Power Consumption | Varies based on configuration and workload |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 10% to 90% non-condensing |
| Dimensions (H × W × D) | 2.0 in × 8.0 in × 24.4 in (50.8 mm × 203.2 mm × 619.8 mm) |
| Weight | Approximately 16 lb (varies by configuration) |
| Compliance | Meets NEBS Level 3, RoHS, and other environmental standards |
FAQs for Cisco UCS B200 M3
1. What is the primary function of the UCS B200 M3?
It serves as a high-performance blade server for enterprise virtualization and cloud workloads.
2. What storage options does it support?
It supports dual hot-swappable SAS HDDs or SSDs for flexible storage configurations.
3. How does the UCS B200 M3 improve scalability?
It offers high-density compute power with advanced networking and virtualization features.
4. Is this server suitable for data center deployments?
Yes, it is designed for enterprise-grade reliability and large-scale data center applications.
5. What management options are available?
It supports Cisco UCS Manager for centralized control and remote administration.
