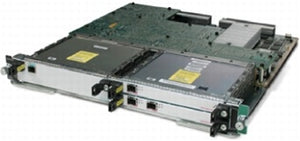

7600-SIP-600 Cisco 7600 Series SPA Interface Processor 600
Cisco 7600 SIP-600 – High-Performance SPA Interface Processor for Scalable Networking
Advanced Cisco 7600 Series SPA Interface Processor with 10-Gbps Bandwidth and Modular Architecture
Cisco 7600-SIP-600 Shared Port Adapter Interface Processor – High-Performance Modular Networking Solution
The Cisco 7600-SIP-600 is a high-capacity, modular interface processor designed for the Cisco 7600 Series Routers, delivering exceptional performance, scalability, and service flexibility. Supporting up to 1 Shared Port Adapter (SPA) per module, this versatile component enables seamless integration of a wide range of networking interfaces, including Ethernet, POS, and ATM, to meet diverse enterprise and service provider requirements.
With 10 Gbps switch fabric capacity and the ability to handle up to 24 million packets per second (Mpps), the SIP-600 ensures efficient, low-latency data forwarding for both IPv4 and IPv6 environments. Its 256 MB packet buffer with up to 200 ms bidirectional buffering provides consistent performance under heavy network loads. Designed for high-availability architectures, it supports redundancy features that minimize downtime and maintain continuous operations.
The SIP-600 operates on Cisco IOS Software, offering advanced Layer 2 and Layer 3 services, MPLS, QoS, and VPN support, making it an ideal choice for large-scale networks requiring secure, high-speed connectivity. Built for enterprise-grade durability, it adheres to NEBS Level 3 and ETSI standards, ensuring reliable operation in demanding environments.
Upgrade your network’s performance and adaptability with the Cisco 7600-SIP-600 – a proven, scalable solution for mission-critical infrastructures.
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
Product Specifications – Cisco 7600-SIP-600 Shared Port Adapter Interface Processor
Click Here for Data Sheet
| Specification | Details |
|---|---|
| Form Factor | Modular interface processor for Cisco 7600 Series Routers |
| Maximum Number of SPAs | 1 SPA per module |
| Switch Fabric Capacity | 10 Gbps |
| Packet Forwarding Rate | Up to 24 million packets per second (Mpps) |
| Packet Memory | 256 MB with up to 200 ms bidirectional buffering |
| Supported Services | Advanced Layer 2 & Layer 3 services, MPLS, QoS, IPv4/IPv6 routing |
| Memory | 1 GB DRAM (control plane), 256 MB packet buffer |
| Redundancy | Supports high-availability configurations |
| Interfaces | Varies based on installed SPA (Ethernet, POS, ATM, etc.) |
| Network Ports | Supports various SPA modules for flexible connectivity |
| Management Interfaces | CLI, SNMP, Web-based GUI, Cisco IOS |
| Operating System | Cisco IOS Software |
| Power Consumption | Varies based on chassis and SPA configuration |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | –40°F to 167°F (–40°C to 75°C) |
| Relative Humidity | 10% to 90% (non-condensing) |
| Compliance | NEBS Level 3, ETSI standards |
| Weight | Varies based on configuration |
FAQs for Cisco 7600-SIP-600
1. What is the primary function of the 7600-SIP-600?
It serves as a high-performance SPA interface processor for Cisco 7600 series routers, enabling modular connectivity.
2. What SPA modules are supported?
It supports a variety of SPA modules for different networking needs.
3. How does the 7600-SIP-600 improve network scalability?
It offers modular port adapters and advanced traffic management features.
4. Is this processor suitable for service provider deployments?
Yes, it is designed for carrier-grade reliability and large-scale service provider applications.
5. What management options are available?
It supports CLI, SNMP, and Cisco IOS for streamlined network operations.
